| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Ambient Temperature | |
| Body Material | |
| Contact Resistance | |
| For Use With | |
| Insulation Resistance | |
| Mounting Type |

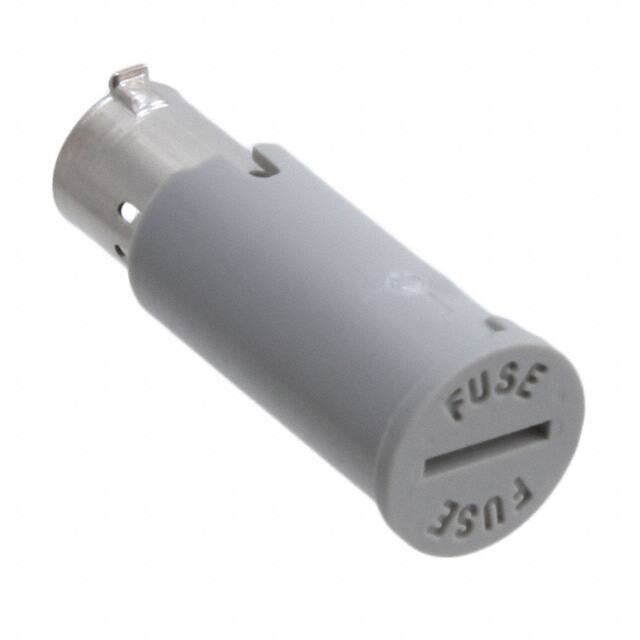

The Littelfuse Inc. 03450601HX020 is a fuseholder knob accessory, designed for use with 3AG fuses. This component is intended for soldering directly to printed circuit boards, facilitating secure integration into electronic assemblies.
Key electrical specifications include an insulation resistance of 10,000 megohms minimum at 500 VDC and a dielectric strength of 4000 volts minimum. The contact resistance is less than 0.005 ohm average at one ampere. The operating ambient temperature range is -40°C to +85°C.
The knob is constructed from grey or black glass-filled thermoplastic (UL94 V-0), ensuring durability and resistance to environmental factors. The terminals are made of brass and are tin-plated for optimal conductivity. This fuseholder knob is compatible with 3AG, 3AB, and 5x20mm fuse sizes, offering versatility in application.
Designed per IEC standards 60127-6, this fuseholder aims to eliminate the possibility of electrical shock. Its circuit board mounting design simplifies assembly and ensures a stable connection within the system.
Minimum 10,000 MΩ at 500 VDC.
Less than 0.005Ω average at 1 A.
4000 V minimum.
-40°C to +85°C.
3AG, 3AB, and 5x20mm.
Circuit board mounted, intended for soldering to PCBs.
Body: black glass-filled thermoplastic (UL 94V0); Knob: grey or black glass-filled thermoplastic (UL94 V-0); Terminals: brass, tin-plated.
