| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

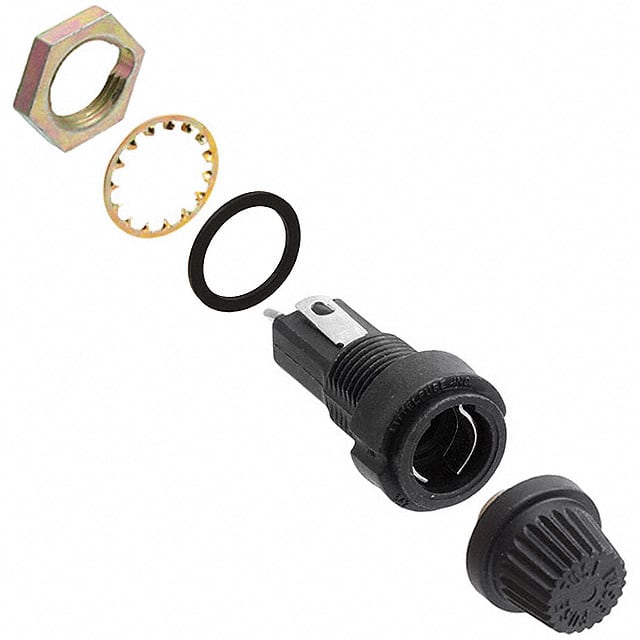

The Littelfuse 03420012HXL is a panel mount fuseholder from the 342 series, designed for 3AG/AB cartridge fuses. It is rated for 20 amperes at voltages up to 250V. The fuseholder features a solder lug termination style and accepts fuses of size 0.25" diameter by 1.26" length (6.35mm x 32mm). The contact material is brass with tin plating. The operating temperature range is -40°C to +85°C. The fuseholder is made with black thermoplastic (UL94 V-0) and includes a mounting nut and neoprene washer. It is suitable for general applications requiring a reliable panel mount fuseholder. The dielectric strength is 2400V minimum. The part is RoHS compliant (unverified) and has MSL 1 unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.47 | $5.47 |
| 5+ | $4.65 | $4.65 |
| 10+ | $4.29 | $4.29 |
| 50+ | $3.56 | $3.56 |
| 100+ | $3.22 | $3.22 |
| 300+ | $2.88 | $2.88 |
| 500+ | $2.71 | $2.71 |
| 1,000+ | $2.57 | $2.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 A.
250 V.
3AG/AB cartridge fuses, 1/4" x 1-1/4" (SFE-20).
Panel mount.
Solder lug.
-40°C to +85°C.
2400 V minimum.
