| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Body Material | |
| Current Rating | |
| For Use With | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

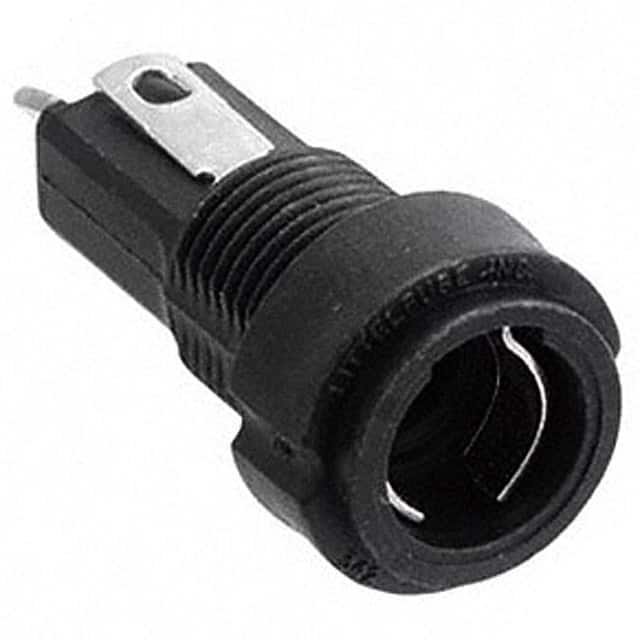

The Littelfuse 03420012HX010 is a panel mount enclosed fuseholder from the 342 Series, designed for use with 3AG, SFE, and 3AG/AB fuses. It is rated for 20 amperes at voltages up to 250V, with a minimum dielectric strength of 2400V. The operating temperature range is -40°C to +85°C, making it suitable for a wide variety of environments.
The fuseholder features a panel mount configuration with solder terminals, and the body is made of black thermoplastic rated UL94 V-0. It can withstand a mounting torque of 15 lb-in. The ingress protection rating is IP40, providing basic protection against solid objects. Note that a watertight variant with IP67 is also available in the series.
This component is typically used in circuit protection applications where a reliable, enclosed fuseholder is required. The standard package quantity is 100 pieces, but this value is unverified. Compliance data (RoHS, MSL, REACH) is provided but unverified from the manufacturer.
20 amperes nominal.
250 volts.
3AG, SFE, and 3AG/AB fuses.
-40°C to +85°C.
Panel mount.
Solder terminals.
2400 volts minimum (general application).
