Mfr Part #:

0339-0-15-15-15-27-10-0

Name: 0339-0-15-15-15-27-10-0
Brand: Mill-Max Manufacturing
SKU: 0339-0-15-15-15-27-10-0

Description:

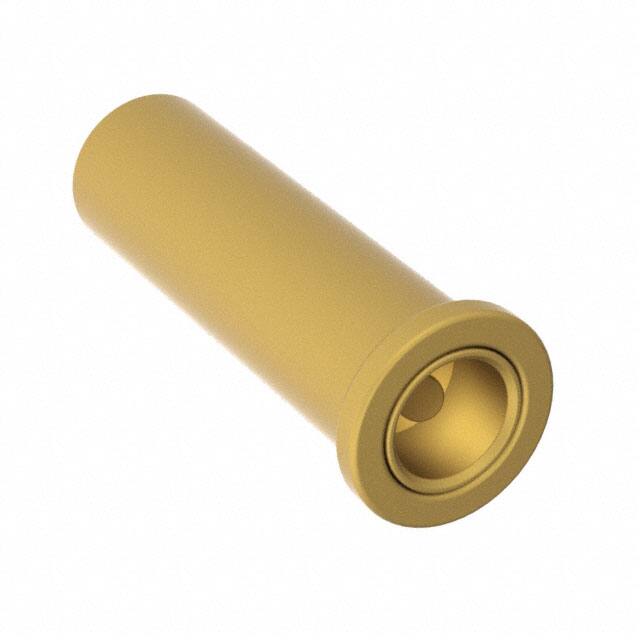

CONN RECEPT PIN .020-.032" .190"

Stock on Request

0339-0-15-15-15-27-10-0 Description

Short technical summary and product information.

CONN RECEPT PIN .020-.032" .190"

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Mill-Max Manufacturing

CONN PIN RCPT

Mill-Max Manufacturing

CONN PIN RCPT .020-.032 SOLDER

Category	PC Pin Receptacles, Socket Connectors
Manufacturer Name	Mill-Max Manufacturing
Accepts Pin Diameter	0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Beryllium Copper
Flange Diameter	0.068" (1.73mm)
Length	0.190" (4.83mm)
Mounting Hole Diameter	0.057" (1.45mm)
Pin Hole Diameter	0.047" (1.19mm)
Socket Depth	0.167" (4.24mm)
Tail Type	No Tail
Termination	Solder
