| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Cold Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| SVHC Present | |
| Size | |
| Size / Dimension | |
| Tape & Reel | |
| Voltage Rating |

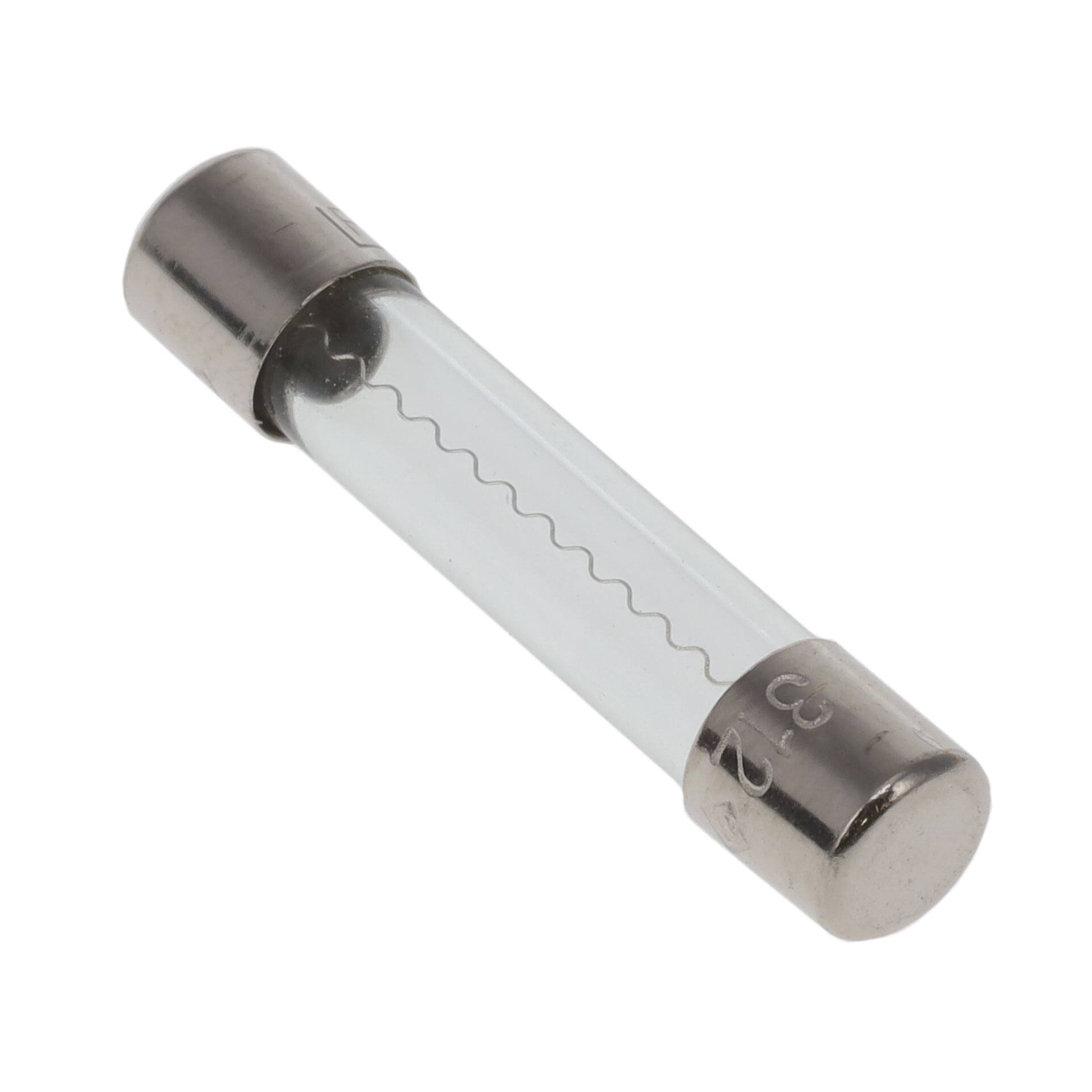

The Littelfuse 0312004.HXP is a 3AG fast-acting glass cartridge fuse rated at 4A and 250VAC. It is part of the 312 Series, designed for supplementary protection in appliances and equipment.
Electrical characteristics include a fast blow response time, a breaking capacity of 200A at rated voltage, a nominal cold resistance of 0.0293 ohms, and a melting I²t of 28.5 A²s. The operating temperature range is -55°C to 125°C.
The fuse comes in a 3AB/3AG package (0.250" diameter x 1.250" length) and requires a holder for mounting. It is available in cartridge format.
The fuse is RoHS compliant and has approvals from CE, CSA, KC, PSE, and UL. It is lead-free.
4 A.
250 VAC (maximum 650 VAC).
200 A at rated voltage 250 VAC.
Fast blow.
3AB/3AG, 1/4" x 1-1/4" (6.35mm x 31.75mm).
28.5 A²·s.
-55°C to 125°C.
