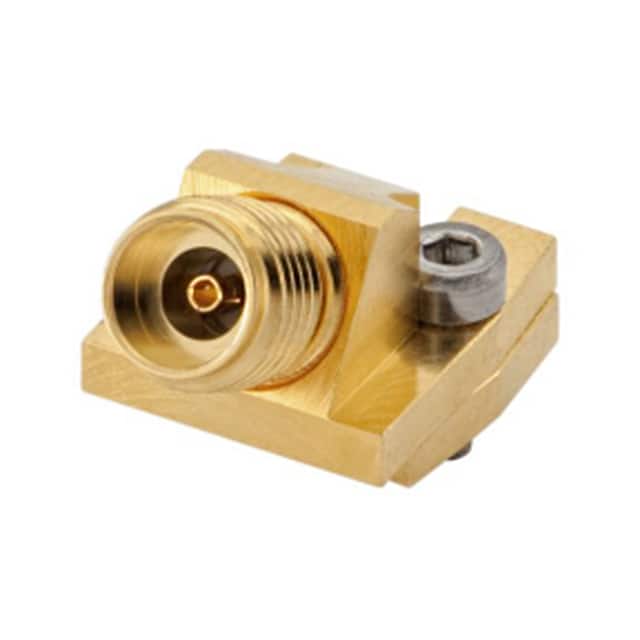

The Rosenberger 02K80A-40ML5 is an RPC-2.92 SMD connector jack, female socket type, compliant with IEC 61169-35. It is mechanically compatible with RPC-3.50 and SMA connectors.
Electrical specifications include 50 Ω impedance, DC to 40 GHz frequency range, return loss ≥21 dB from DC to 26.5 GHz and ≥19 dB from 26.5 to 40 GHz, insertion loss ≤0.04×sqrt(f) dB, working voltage 250 V rms, test voltage 750 V rms, and insulation resistance ≥5 GΩ.
The connector features a gold-plated beryllium copper center contact, PEEK dielectric, and threaded fastening. It is surface mounted with right angle orientation, supports PCB thickness up to 1.5 mm, and offers mating cycles of ≥300 on the PCB side and ≥500 on the RPC-2.92 side. Weight is 6.7 g.
Environmental rating is -40°C to +85°C. The device is RoHS compliant and comes packaged in a single box or 50-piece blister.
Working voltage is 250 V rms, test voltage is 750 V rms.
Surface mount, right angle.
50 Ω.
DC to 40 GHz.
RPC-2.92 female jack (IEC 61169-35).
-40°C to +85°C.
Center contact is beryllium copper with gold plating; dielectric is PEEK; outer contact is copper alloy with gold plating.
