| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| DIN/ISO Compliance | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Interrupting Rating | |
| Length | |
| Maximum Operating Temperature | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package Size Code | |
| Package Style | |
| Response Time | |
| SAE Compliance | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Test Cable Size | |
| Typical Cold Resistance | |
| Typical Voltage Drop | |
| Typical Weight | |
| UL | |
| Voltage Rating | |
| Width |

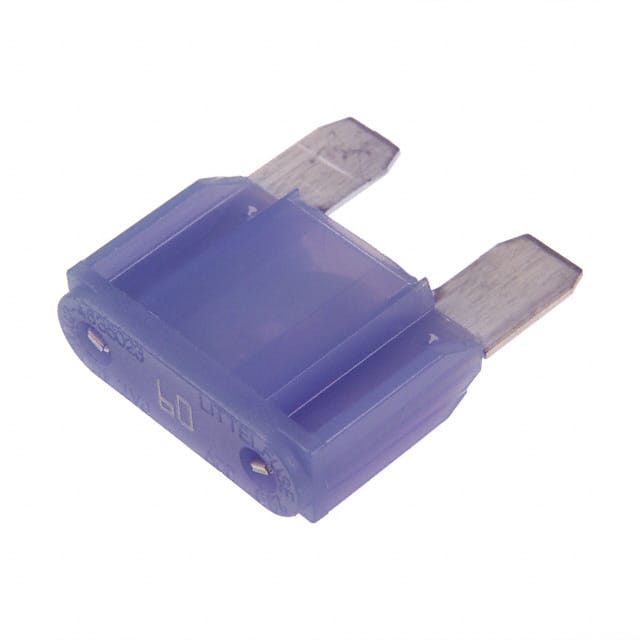

The Littelfuse 0299060.ZXNV is a 60A, 32V DC automotive blade fuse from the MAXI series. It features a slow-blow (time-delay) response, making it suitable for circuits with inrush currents. The fuse has an interrupting rating of 1000A at 32V DC and a melting I²t of 15300 A²s. It is designed for use with a holder and comes in a blue blade package (size 1200). The housing is made of PA66 with UL 94 V-2 flammability rating, and terminals are silver-plated zinc alloy for high-temperature capability up to 150°C at the interface. Typical voltage drop is 77 mV and cold resistance is 0.9 mΩ. The fuse complies with ISO 8820-3:2002, SAE J 1888, and SAE 2576 standards. It is RoHS and REACH compliant and UL recognized. Applications include automotive, trucks, SUVs, offroad vehicles, buses, and watercraft.
60A.
32V DC.
1000A at 32V DC.
Slow-blow (time-delay).
Blade, Max (MAXI series).
-40°C to 125°C.
Yes, RoHS3 compliant.
