| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Tape & Reel | |
| Terminals Material | |
| Termination Style | |
| Voltage Rating | |
| Width |

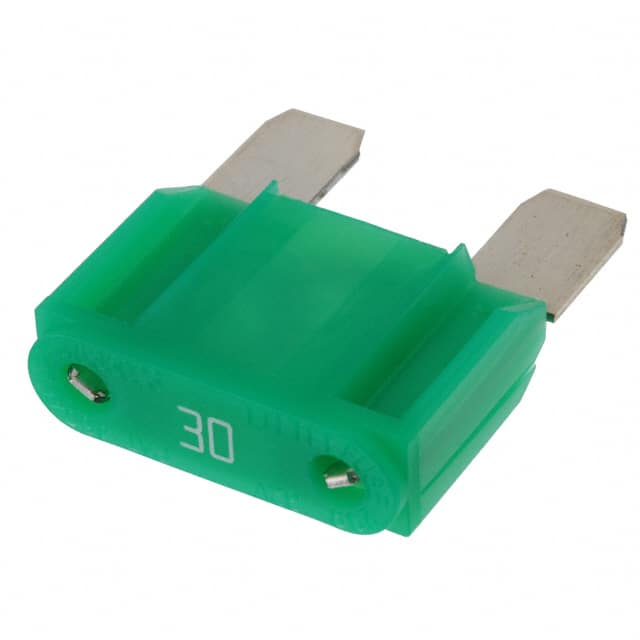

The Littelfuse MAXI Slo-Blo 0299030.TXN is a 30A automotive blade fuse designed for 32V DC systems. It features slow-blow time-delay characteristics using diffusion pill technology, making it suitable for circuits with high inrush currents. The fuse offers an interrupting rating of 1000A at 32V DC and has a melting I²t of 4070 A²s. It operates over a temperature range of -40°C to +125°C. The housing is made of PA66 with a UL94 V-2 flammability rating, and the terminals are silver-plated zinc alloy for high-temperature capability. The green body color indicates the 30A rating. It comes in a MAXI blade package and requires a holder for mounting. Typical applications include automotive, truck, SUV, bus, and watercraft circuit protection.
The current rating is 30 A.
The voltage rating is 32 V DC.
The breaking capacity is 1000 A at 32 V DC.
It is a slow-blow (time-delay) fuse.
The package type is Blade, Max, which requires a holder for mounting.
The operating temperature range is -40°C to +125°C.
The housing is PA66 (UL94 V-2) and terminals are silver-plated zinc alloy.
