| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
79 pcs
|
79 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Flammability Rating | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Interrupting Rating | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Net Weight | |
| Operating Temperature | |
| Response Time | |
| Tape & Reel | |
| Terminal Material | |
| Typical Cold Resistance | |
| Typical Voltage Drop | |
| Voltage Rating | |
| Width |

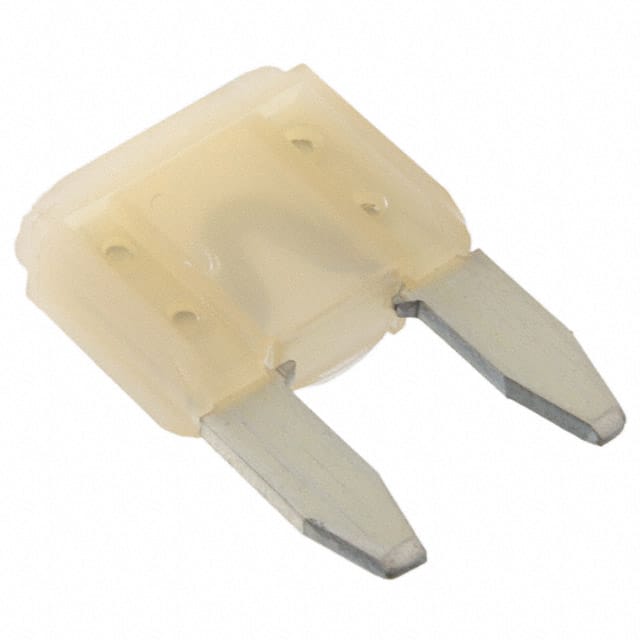

The 0297025.WXNV is a Littelfuse MINI blade fuse rated for 25 A at 32 VDC. Designed for automotive circuit protection, it offers a fast-blow response and a breaking capacity of 1000 A at rated voltage. The fuse features a clear PA66 housing with a V2 flammability rating and silver/tin plated zinc alloy terminals.
This miniature package fuse measures 10.90 mm x 3.80 mm x 8.80 mm and weighs 0.57 g. It requires a holder for mounting and operates over a temperature range of -40°C to 125°C. Typical voltage drop is 86 mV with a cold resistance of 2.36 mΩ.
Common applications include protecting wiring and electrical circuits in cars, trucks, SUVs, offroad vehicles, buses, and watercraft. The fuse's see-through housing allows visual inspection, and the top-mounted checkpoints enable resistance measurement without removal.
The 0297025.WXNV is rated for 25 A.
The voltage rating is 32 VDC.
The breaking capacity is 1000 A at 32 VDC.
It is a fast-blow automotive blade fuse in miniature package.
The fuse measures 10.90 mm x 3.80 mm x 8.80 mm (length x width x height).
