| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Net Weight | |
| Operating Temperature | |
| Response Time | |
| Tape & Reel | |
| Terminals Material | |
| Test Cable Size | |
| Typical Cold Resistance | |
| Typical Voltage Drop | |
| Voltage Rating | |
| Width |

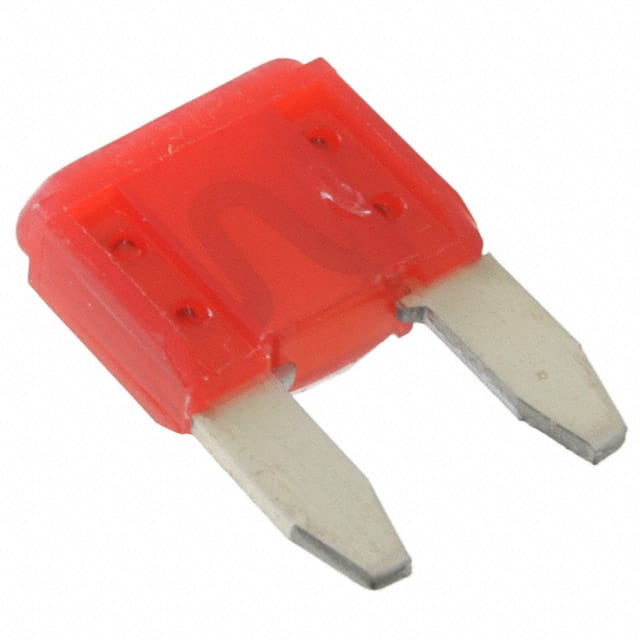

The Littelfuse 0297010.WXNV is a MINI 32V automotive blade fuse rated at 10A with a fast blow response time. It features a compact miniature design that allows automakers to pack more circuit protection into less space while maintaining reliable performance in adverse environments and extreme temperatures.
Key electrical specifications include a voltage rating of 32 VDC, interrupting rating of 1000A at 32 VDC, melting I²t of 93 A²s, typical voltage drop of 108 mV, and typical cold resistance of 7.42 mΩ. The fuse is designed for use with a 1 mm² test cable.
The fuse is housed in a red PA66 body with U.L. 94 V-2 flammability rating and features silver or tin plated zinc alloy terminals. Mechanical dimensions are 10.90mm length, 3.80mm width, and 8.80mm height, with a net weight of 0.57 g. Operating temperature range is -40°C to +125°C.
This fuse requires a separate holder for mounting and is suitable for use in cars, trucks, SUVs, offroad vehicles, buses, and watercraft as approved by Littelfuse.
The current rating is 10 A.
The voltage rating is 32 VDC.
The breaking capacity is 1000A at 32 VDC.
The response time is fast blow.
The package is a miniature blade fuse.
The operating temperature range is -40°C to 125°C.
The melting I²t is 93 A²s.
