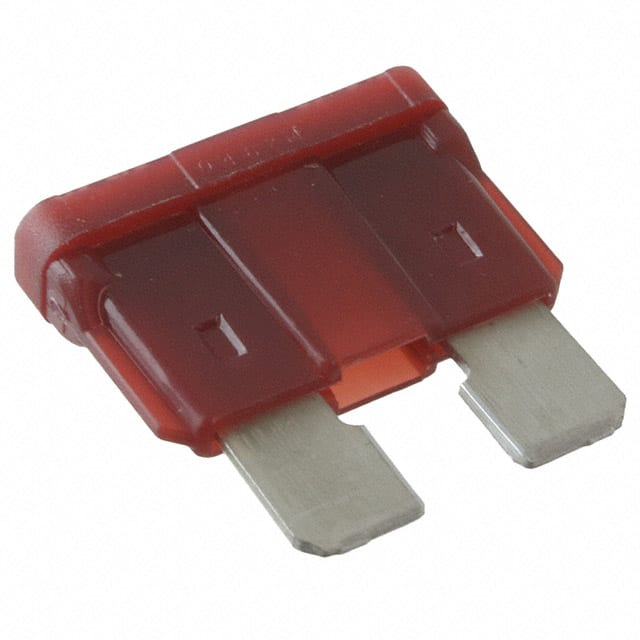

028707.5PXCN Littelfuse 028707.5PXCN is a 7.5A, 32V DC automotive blade fuse from the ATOF series. It features tin-plated terminals and PA66 housing.
Mfr Part #:

028707.5PXCN

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Littelfuse 028707.5PXCN is a 7.5A, 32V DC automotive blade fuse from the ATOF series. It features tin-plated terminals and PA66 housing.
✓ Total Stock: 8,000 pcs

028707.5PXCN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

028707.5PXCN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Automotive Grade
Color
Current Rating (Amps)
Fuse Type
Height
Housing Material
Length
Melting I²t
Mounting Type
Operating Temperature
Package / Case
SVHC Present
Tape & Reel
Voltage Rating
Width
View Similar Products (0)

028707.5PXCN Description

Short technical summary and product information.

The Littelfuse 028707.5PXCN is an ATOF series automotive blade fuse rated for 7.5A at 32V DC. It has an interrupting rating of 1000A at 32V DC and a melting I²t of 60 A²s. The fuse is designed for low-voltage circuit protection in vehicles such as cars, SUVs, trucks, and watercraft. It complies with SAE J1284 and ISO 8820-3 standards. The housing is made of PA66 with UL 94 V-2 flammability rating, and the terminals are tin-plated. The fuse requires a holder for mounting and has dimensions of 19.10mm x 5.10mm x 12.30mm. Typical voltage drop at rated current is 116 mV, and cold resistance is 10.91 mΩ. The operating temperature range is -40°C to 105°C (note: datasheet specifies -40°C to 125°C for ATOF non-shunt, but existing data shows 105°C). The brown color indicates the 7.5A rating. Standard package quantity is 2000 pieces.

028707.5PXCN Quick Information

Product Type: Fuse
Series: ATOF
Canonical Name: Littelfuse 028707.5PXCN Automotive Blade Fuse, 7.5A, 32V DC
Subcategory: Automotive Blade Fuse

028707.5PXCN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

028707.5PXCN Features

  • Rated for 7.5A at 32V DC.
  • Interrupting rating of 1000A at 32V DC.
  • Tin-plated terminals for reliable connection.
  • PA66 housing with UL 94 V-2 flammability rating.
  • Color-coded brown for 7.5A identification.

028707.5PXCN Applications

  • Used in automotive low-voltage circuit protection.
  • Suitable for cars, SUVs, trucks, and watercraft.
  • Complies with SAE J1284 and ISO 8820-3 standards.

028707.5PXCN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 028707.5PXCN fuse?

7.5 A.

What is the voltage rating?

32 V DC.

What is the interrupting rating?

1000 A at 32 V DC.

What is the package/case type?

Blade, ATO/ATC.

What is the operating temperature range?

-40°C to 105°C (note: datasheet specifies -40°C to 125°C for ATOF non-shunt).

What is the melting I²t value?

60 A²s.

What is the typical voltage drop?

116 mV at rated current.
