| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,651 pcs
|
1651 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Automotive Grade | |
| Cold Resistance | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Flammability Rating | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Interrupting Rating | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Standard Package Qty | |
| Tape & Reel | |
| Terminal Material | |
| Test Cable Size | |
| Voltage Drop | |
| Voltage Rating | |
| Weight | |
| Width |

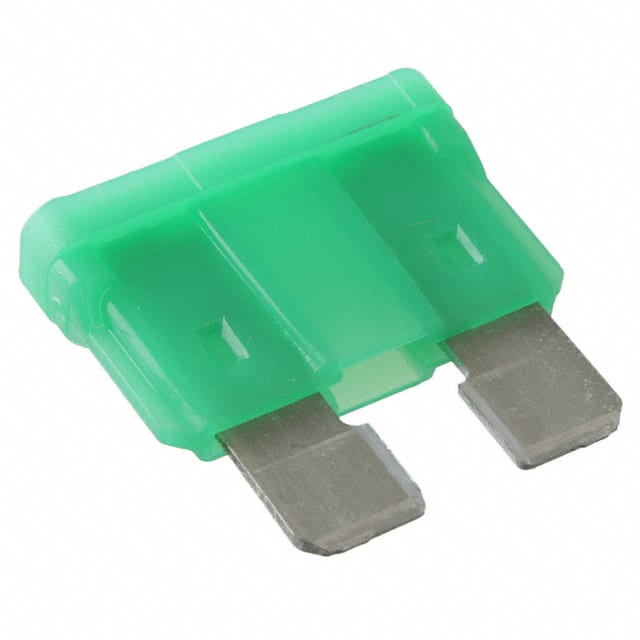

The Littelfuse 0287030.PXCN is an ATOF series automotive blade fuse designed for low-voltage circuit protection in vehicles. It is rated at 30A continuous current with a maximum voltage of 32V DC and an interrupting rating of 1000A at 32V DC.
The fuse features a PA66 housing with UL 94 V-2 flammability rating and tin-plated terminals. Its melting I²t is 1500 A²s, and the cold resistance is 1.97 mΩ. The operating temperature range is -40°C to +125°C, making it suitable for harsh automotive environments.
The package is a standard ATO/ATC blade form factor measuring 19.10 mm x 5.10 mm x 12.30 mm. It requires a separate holder for mounting and is available in a standard package quantity of 2000 per reel/tray. The green housing color aids identification, and the ampere stamping provides clear rating visibility.
The current rating is 30 A.
The voltage rating is 32 V DC.
The interrupting rating is 1000 A at 32 V DC.
It uses a blade, ATO/ATC package.
The operating temperature range is -40°C to +125°C.
The melting I²t is 1500 A²s.
The housing color is green.
