| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| CSA | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Standard Package Qty | |
| Tape & Reel | |
| Terminal Material | |
| UL | |
| Voltage Rating | |
| Weight | |
| Width |

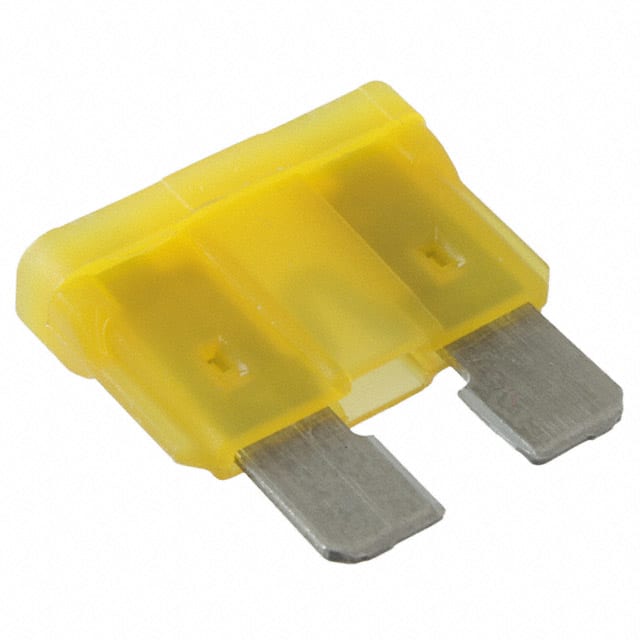

The Littelfuse 0287020.PXCN is an ATOF series automotive blade fuse rated for 20A at 32V DC. It is designed for fast blow overcurrent protection in low-voltage automotive circuits, with a breaking capacity of 1000A at rated voltage. The fuse has a melting I²t of 520 A²s, ensuring reliable coordination with downstream components.
This fuse operates over a temperature range of -40°C to 105°C and is housed in a yellow PA66 housing with UL 94 V-2 flammability rating. The terminals are tin-plated, and the fuse requires a compatible holder for mounting. The package is a standard ATO/ATC blade form factor, measuring 19.10mm x 5.10mm x 12.30mm.
Applications include protecting wiring and electronic modules in cars, trucks, SUVs, buses, and watercraft. The fuse complies with SAE J1284, ISO 8820-3, and is UL listed (File AU1410) and CSA certified (File No. 29862).
The fuse is rated at 20 A.
The voltage rating is 32 V DC.
The breaking capacity is 1000 A at 32 V DC (1 kA).
It is a fast blow (fast acting) fuse.
The package is Blade, ATO/ATC type, requiring a holder.
The operating temperature range is -40°C to 105°C.
The melting I²t is 520 A²s.
