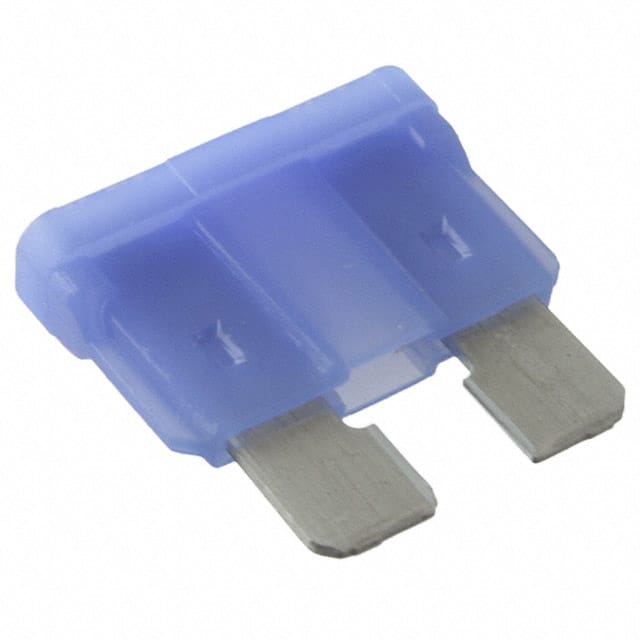

0287015.PXCN Automotive blade fuse rated 15A at 32V DC. Part of Littelfuse ATOF series with tin-plated terminals.
Mfr Part #:

0287015.PXCN

Available from 2 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Automotive blade fuse rated 15A at 32V DC. Part of Littelfuse ATOF series with tin-plated terminals.
✓ Total Stock: 101,501 pcs

0287015.PXCN Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
100,000 pcs
On Request
100000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Smaxon Electronics ✓
Non-Authorised Inventory information
1,501 pcs
On Request
1501 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0287015.PXCN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Automotive Grade
Color
Current Rating
Current Rating (Amps)
Fuse Type
Height
Housing Material
Length
Melting I²t
Mounting Type
Operating Temperature
Package / Case
Tape & Reel
Termination Style
Voltage Rating
Weight
Width
View Similar Products (0)

0287015.PXCN Description

Short technical summary and product information.

The Littelfuse 0287015.PXCN is an ATOF series automotive blade fuse designed for low-voltage circuit protection in vehicles. It is rated at 15A with a maximum voltage of 32V DC and can interrupt currents up to 1000A at rated voltage. The fuse has a melting I²t of 340 A²s and a typical voltage drop of 102 mV at rated current.



The operating temperature range is -40°C to +125°C, making it suitable for harsh automotive environments. The housing is made of PA66 with UL 94 V-2 flammability rating, and the terminals are tin-plated for reliable electrical contact. The fuse body is blue in color and measures 19.10 mm x 5.10 mm x 12.30 mm, weighing 1.4 g.



Mounting requires a compatible holder. The fuse complies with SAE J1284 and ISO 8820-3 standards, and is UL listed (File AU1410) and CSA certified (File 29862). It is available in a blade package type ATO/ATC, and typical applications include cars, SUVs, trucks, off-road vehicles, and watercraft.

0287015.PXCN Quick Information

Product Type: Automotive Blade Fuse
Series: ATOF
Canonical Name: Littelfuse ATOF 15A Automotive Blade Fuse, 32V DC (0287015.PXCN)
Subcategory: Blade Fuses

0287015.PXCN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0287015.PXCN Features

  • Rated 15A at 32V DC.
  • Interrupting capacity of 1000A.
  • Operating temperature -40°C to +125°C.
  • UL and CSA approved.
  • Tin-plated terminals for reliable connection.

0287015.PXCN Applications

  • Protects automotive low-voltage circuits.
  • Suitable for cars, SUVs, and trucks.
  • Used in off-road vehicles and watercraft.
  • Replaces obsolete ATO Series 257 fuses.

0287015.PXCN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of this fuse?

15 A.

What is the voltage rating?

32 V DC.

What is the interrupting rating?

1000 A @ 32 V DC.

What is the package or case type?

Blade, ATO/ATC.

What is the operating temperature range?

-40°C to +125°C.

What is the melting I²t value?

340 A²s.

What certifications does this fuse have?

CSA, UL (UL File AU1410, CSA File 29862).
