| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
274 pcs
|
274 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Cold Resistance | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Flammability Rating | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Standard Package Qty | |
| Standards | |
| Tape & Reel | |
| Terminal Finish | |
| Termination Style | |
| Voltage Drop | |
| Voltage Rating | |
| Weight | |
| Width |

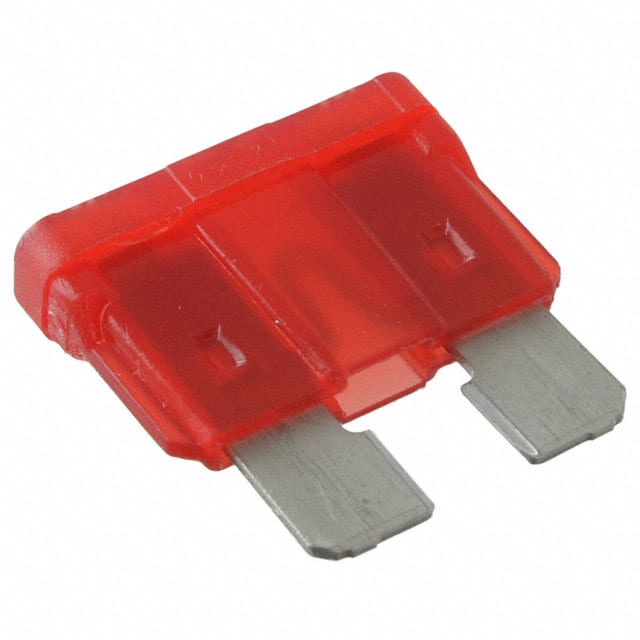

The Littelfuse 0287010.PXCN is an ATOF series automotive blade fuse rated for 10A at 32V DC. It offers a high interrupting capacity of 1000A at rated voltage, ensuring reliable protection in low-voltage automotive circuits. The fuse is fast-acting, with a typical melting I²t of 115 A²s and a voltage drop of 109 mV at rated current.
The housing is made of PA66 with a UL 94 V-2 flammability rating, and terminals are tin-plated. The red color coding indicates the 10A rating, and the transparent housing allows visual inspection of the fuse element. Operating temperature range is -40°C to +125°C.
This fuse complies with SAE J1284 and ISO 8820-3 standards and is UL listed (File AU1410) and CSA certified (File No. 29862). It is designed for use in cars, trucks, SUVs, offroad vehicles, and other automotive applications requiring circuit protection.
The current rating is 10 A.
The voltage rating is 32 V DC.
The breaking capacity is 1000 A at 32 V DC.
The response time is fast blow (fast-acting).
The package is Blade, ATO/ATC.
The operating temperature range is -40°C to +125°C.
It is UL listed (File AU1410) and CSA certified (File No. 29862).
