| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
477 pcs
|
477 pcs | On Request | 1 | On Request | On Request | 2014+ | On Request | On Request | |
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| CSA | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Flammability Rating | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package Type | |
| Response Time | |
| Tape & Reel | |
| Terminal Material | |
| Typical Cold Resistance | |
| Typical Voltage Drop | |
| UL | |
| Voltage Rating | |
| Weight | |
| Width |

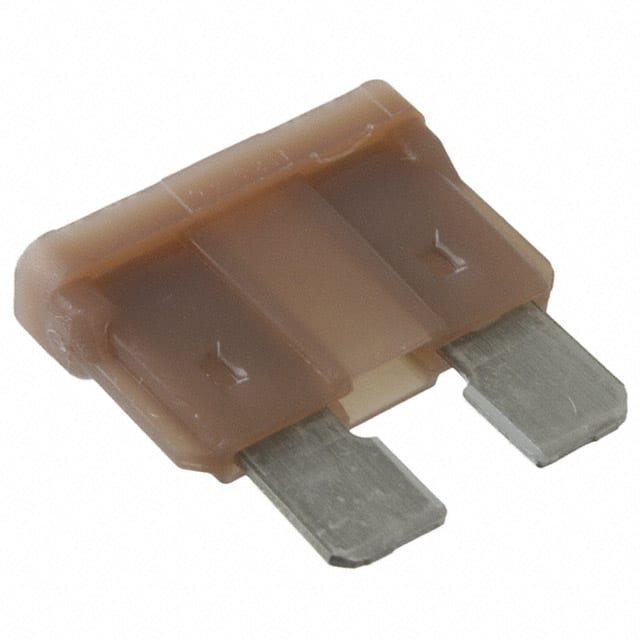

The Littelfuse 0287005.PXCN is an ATOF series automotive blade fuse rated for 5A at 32V DC. It offers a fast blow response and a breaking capacity of 1000A at 32V. The fuse has a melting I2t of 26 A²s and a typical voltage drop of 128 mV with a cold resistance of 17.85 mΩ. It operates over a temperature range of -40°C to 105°C.
The fuse comes in a standard ATO/ATC blade package measuring 19.10mm x 5.10mm x 12.30mm and requires an external holder for mounting. The housing is made of PA66 with a UL 94 V-2 flammability rating and the terminals are tin-plated. The tan-colored housing includes visible amperage markings and checkpoints for resistance measurement.
Compliance includes UL listing (File AU1410) and CSA certification (File No. 29862). This fuse is suitable for protecting low-voltage circuits in cars, trucks, SUVs, offroad vehicles, buses, and watercraft applications.
The current rating is 5 A.
The voltage rating is 32 V DC.
The breaking capacity is 1000 A at 32 V DC.
The response time is fast blow (fast-acting).
It is a blade type in ATO/ATC package.
The operating temperature range is -40°C to 105°C.
It is UL listed (File AU1410) and CSA certified (File No. 29862).
