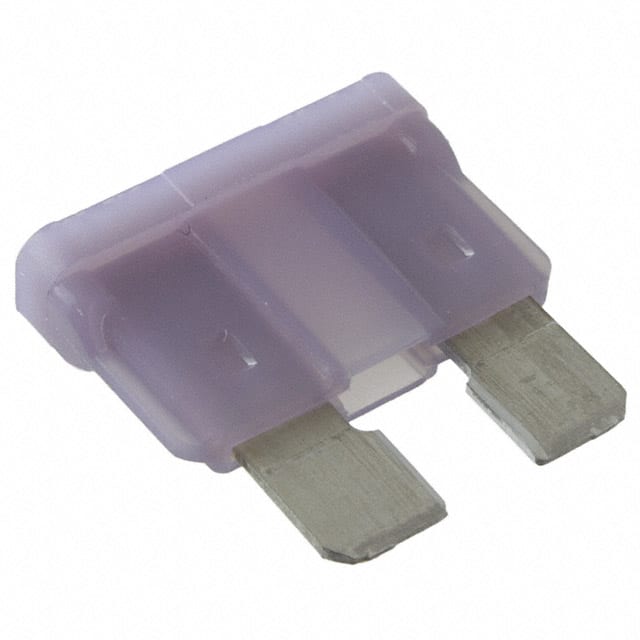

0287003.PXCN Automotive blade fuse rated 3A at 32V DC with fast blow response. Part of Littelfuse's ATOF series for low-voltage circuit protection.
Mfr Part #:

0287003.PXCN

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Automotive blade fuse rated 3A at 32V DC with fast blow response. Part of Littelfuse's ATOF series for low-voltage circuit protection.
✓ Total Stock: 10,000 pcs

0287003.PXCN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0287003.PXCN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Automotive Grade
Breaking Capacity @ Rated Voltage
Color
Current Rating
Current Rating (Amps)
Fuse Type
Height
Housing Material
Length
Melting I²t
Mounting Type
Operating Temperature
Package / Case
Response Time
Tape & Reel
Termination Style
Voltage Rating
Weight
Width
View Similar Products (0)

0287003.PXCN Description

Short technical summary and product information.

The Littelfuse 0287003.PXCN is an ATOF series automotive blade fuse rated at 3 A and 32 V DC with a fast blow response. It has a breaking capacity of 1000 A at 32 V DC, a melting I²t of 7.4 A²s, a typical voltage drop of 137 mV, and a cold resistance of 31.1 mΩ. The operating temperature range is -40°C to +125°C for the standard ATOF series (or -40°C to +105°C for shunt versions, please verify variant). The fuse comes in a Blade, ATO/ATC package and requires a holder for mounting. Dimensions are 19.1 mm x 5.1 mm x 12.3 mm with a weight of 1.4 g. The housing is made of PA66 with a UL94 V-2 flammability rating and the terminals are tin-plated. This part is UL listed under file AU1410 and complies with SAE J1284 and ISO 8820-3. It is suitable for use in cars, SUVs, trucks, off-road vehicles, watercraft, and buses. The standard package quantity is 2000 pieces.

0287003.PXCN Quick Information

Product Type: Automotive Blade Fuse
Series: ATOF
Canonical Name: Littelfuse 0287003.PXCN ATOF Series Automotive Blade Fuse, 3A, 32V DC, Fast Blow
Subcategory: ATO/ATC Blade Fuses

0287003.PXCN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0287003.PXCN Features

  • Rated 3A at 32V DC operation.
  • Fast blow response for sensitive circuits.
  • 1000A breaking capacity at rated voltage.
  • UL listed and SAE J1284 compliant.
  • Tin-plated terminals with PA66 housing.

0287003.PXCN Applications

  • Used in automotive low-voltage circuit protection.
  • Suitable for cars, SUVs, trucks, and watercraft.
  • Ideal for aftermarket fuse replacements.
  • Compatible with ATO/ATC blade fuse holders.

0287003.PXCN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 0287003.PXCN?

The current rating is 3 A.

What is the voltage rating of this fuse?

The voltage rating is 32 V DC.

What is the breaking capacity?

The breaking capacity is 1000 A at 32 V DC.

Is this a fast blow or slow blow fuse?

It is a fast blow fuse.

What is the package / case type?

The package type is Blade, ATO/ATC.

What is the melting I²t value?

The melting I²t is 7.4 A²s.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C for the ATOF series. A shunt version has a range of -40°C to +105°C. Please verify the specific variant with the manufacturer.
