| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,554 pcs
|
1554 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,554 pcs
|
1554 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Cold Resistance | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Industrial Grade | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Voltage Drop | |
| Voltage Rating | |
| Weight | |
| Width |

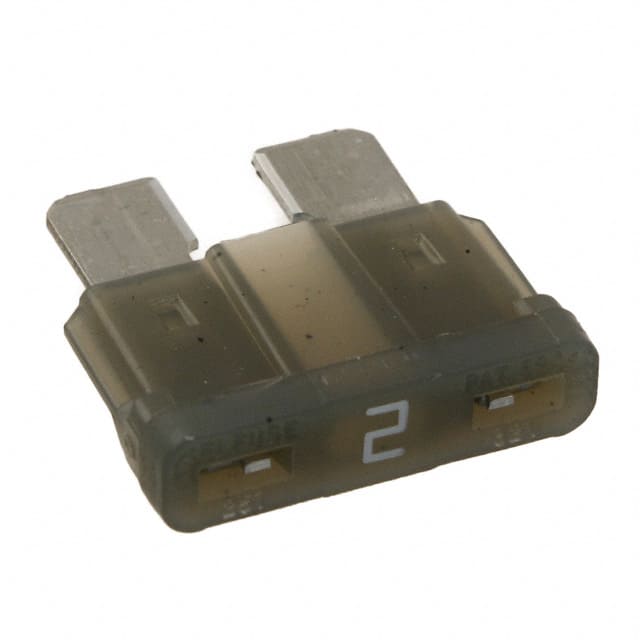

The Littelfuse 0287002.PXCN is an ATOF series automotive blade fuse rated for 2A at 32V DC. It features a fast blow response time and a breaking capacity of 1kA at rated voltage. The fuse is housed in a gray PA66 (Polyamide 66) housing with tin-plated blade terminals and weighs 1.4 g. It is designed for use with a separate holder and complies with SAE J1284 and ISO 8820-3 standards.
Electrical characteristics include a typical voltage drop of 141 mV and cold resistance of 53.5 mΩ. The melting I²t is 1.4 A²s. The operating temperature range is -40°C to +125°C. The fuse is UL listed and CSA certified.
This ATOF blade fuse is intended for low-voltage circuit protection in automotive and marine applications. Its see-through housing allows visual inspection of the fuse element, and checkpoints on top enable resistance measurement without removal. The color-coded gray housing indicates the 2A rating.
2 A.
32 V DC.
1 kA at 32 V DC.
Fast blow.
Blade, ATO/ATC package.
-40°C to +125°C.
UL listed and CSA certified.
