| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Retaining Hardware | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

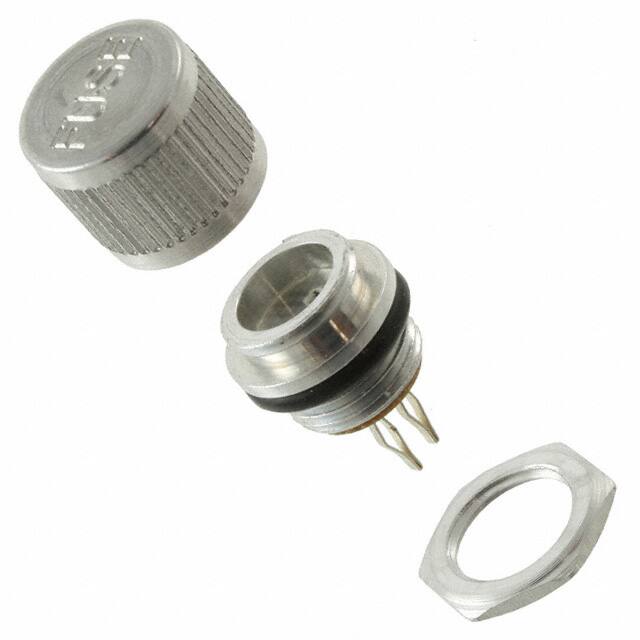

This panel mount fuseholder from Littelfuse is designed to accept radial lead fuses, specifically the MICRO/TR3 series and other compatible fuses with 0.025" diameter leads. The holder provides reliable circuit protection in a compact panel-mount package.
Electrical specifications include a current rating of 5A at any voltage up to 125V, with an operating temperature range of -40°C to +125°C. The housing is made of black thermoset material, and the terminals are beryllium copper with silver plating for low resistance and durability.
Mechanical features include panel mounting with PC pin termination and a push-on retaining nut for easy installation. The fuseholder accepts radial fuses with a 0.1" (2.54mm) pitch, making it suitable for a variety of applications where space and reliability are important.
The current rating is 5 A.
The voltage rating is 125 V.
Panel mount with PC pin termination and a push-on retaining nut.
-40°C to +125°C.
Beryllium copper with silver plating.
Radial lead fuses with 0.1" (2.54mm) pitch, compatible with Littelfuse MICRO/TR3 series.
