| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
121 pcs
|
121 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Body Material | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Encapsulated | |
| Features | |
| Fuse Type | |
| Hazardous Location Class | |
| Insulation Resistance After Opening | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Standards | |
| Tape & Reel | |
| Terminal Material | |
| Vibration Resistance | |
| Voltage Rating |

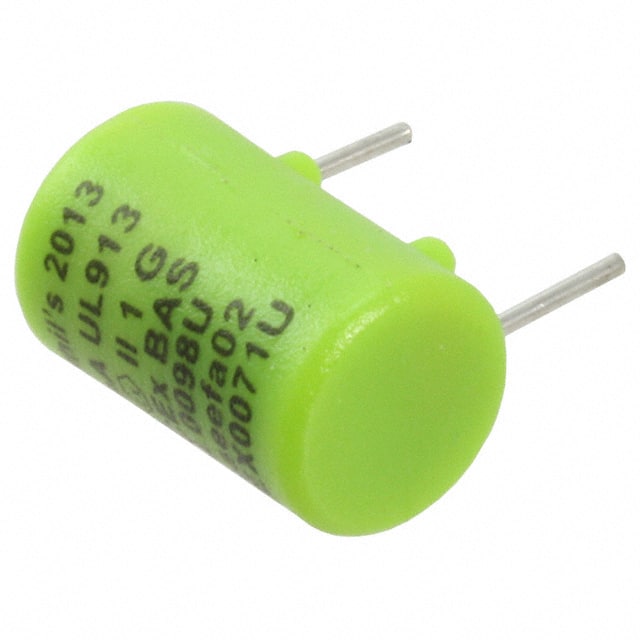

The Littelfuse 0259003.MX913 is a board mount fuse from the PICO 259 Safe-T-Plus series, designed for use in hazardous locations. It is encapsulated and sealed for intrinsically safe apparatus, meeting ATEX and IECEx certifications.
Key specifications: rated at 3A and 125V AC/DC, with a breaking capacity of 50A AC and 300A DC. The fuse features a through-hole mounting in a radial can horizontal package measuring 8.00mm x 13.00mm. Operating temperature range is -55°C to 90°C.
This fuse is suitable for hazardous locations including Class I, II, III; Zone 0; Gas Zone 0. Certifications include Baseefa, UR, ATEX, IECEx, and UL. It is RoHS compliant.
The fuse body is made of polyamide with tin plated copper alloy terminals. It meets MIL-STD-202 vibration resistance standards.
3A.
125V AC and DC.
50A AC and 300A DC.
Minimum 4 hours at 100% rated current, maximum 5 seconds at 200% rated current.
Radial, Can, Horizontal, through-hole, 8.00mm x 13.00mm.
Yes, RoHS3 compliant per datasheet.
Baseefa, UR, ATEX, IECEx. Suitable for Class I, II, III; Zone 0; Gas Zone 0.
