| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Compliance Standards | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature Range | |
| Response Time | |
| Tape & Reel | |
| Terminal Material | |
| Voltage Rating | |
| Width |

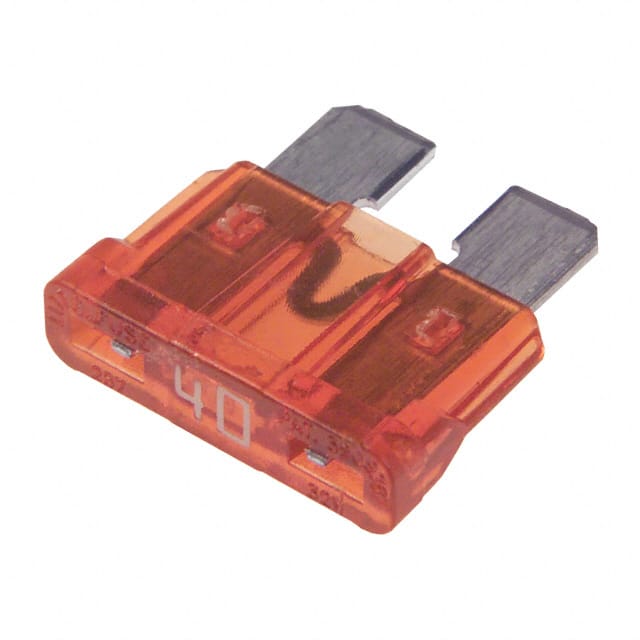

The 0257040.PXPV is a Littelfuse ATO blade fuse designed for automotive and low voltage electronic applications. It is rated for 40A continuous current at 32V DC with a fast blow response time. The fuse has a breaking capacity of 1kA at 32V DC, ensuring reliable interruption under fault conditions. The operating temperature range spans -40°C to +105°C, making it suitable for harsh environments. The fuse features an orange housing and tin-plated zinc alloy terminals, housed in a polyethersulfone, polysulfone, and polycarbonate body. It complies with ISO 8820-3 and UL 248 Special Purpose Fuses standards. The package type is Blade, ATO/ATC, and it requires a compatible holder for mounting. Dimensions are 19.10 mm length, 5.10 mm width, and 12.30 mm height.
The current rating is 40 A.
The voltage rating is 32 V DC.
The breaking capacity is 1 kA at 32 V DC.
The response time is Fast Blow.
The package is Blade, ATO/ATC.
The operating temperature range is -40°C to +105°C.
The melting I²t is 3310 A²s.
