| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Interrupting Rating | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature Range | |
| Response Time | |
| Tape & Reel | |
| Terminal Material | |
| Voltage Rating | |
| Width |

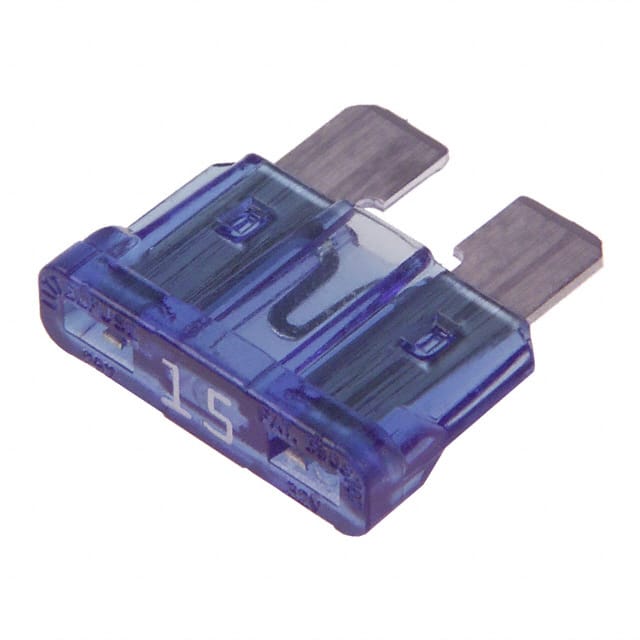

The Littelfuse 0257015.PXPV is an ATO blade fuse designed for automotive and low voltage electronic circuit protection. It is rated for 15A continuous current at 32VDC with a fast blow response time. The fuse offers a breaking capacity of 1kA at rated voltage and a melting I²t of 340 A²s.
This fuse features a blue housing and measures 19.05mm x 5.08mm x 12.19mm. It is constructed with tin-plated zinc alloy terminals and a housing made of polyethersulfone, polysulfone, and polycarbonate materials. The operating temperature range spans -40°C to +105°C.
Designed for automotive and low voltage electronic applications, the ATO blade fuse package requires a compatible fuse holder for installation. It complies with ISO 8820-3 and UL 248 Special Purpose Fuse standards.
The fuse is rated for 15A continuous current.
The voltage rating is 32VDC.
The interrupting rating is 1000A at 32VDC.
It is a fast blow (fast acting) fuse.
It is an ATO/ATC blade fuse package.
The operating temperature range is -40°C to +105°C.
The housing color is blue.
