0257005.PXPV Automotive blade fuse rated 5A at 32VDC with fast blow response. Complies with ISO 8820-3 and UL 248.
Mfr Part #:

0257005.PXPV

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Automotive blade fuse rated 5A at 32VDC with fast blow response. Complies with ISO 8820-3 and UL 248.
✓ Total Stock: 2,087 pcs

0257005.PXPV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,087 pcs
On Request
2087 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0257005.PXPV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Breaking Capacity @ Rated Voltage
Color
Current Rating (Amps)
Fuse Type
Height
Housing Material
Length
Melting I²t
Mounting Type
Operating Temperature Range
Response Time
SVHC Present
Standards
Tape & Reel
Termination Style
Voltage Rating
Width
View Similar Products (0)

0257005.PXPV Description

Short technical summary and product information.

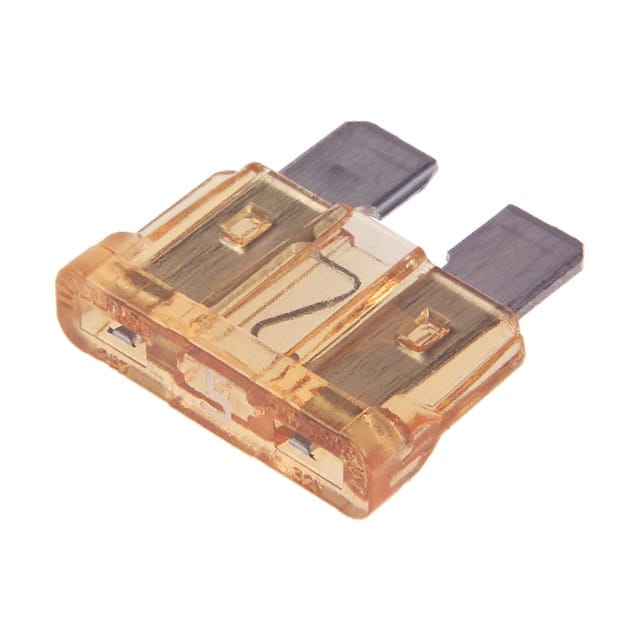

The Littelfuse 0257005.PXPV is an ATO® blade fuse designed for automotive and low voltage electronic applications. Rated at 5A and 32VDC, it features a fast blow response time and an interrupting rating of 1000A at 32VDC. The fuse has a typical voltage drop of 128 mV and cold resistance of 17.85 mΩ. It operates over a temperature range of -40°C to +105°C. The housing is made of polyethersulfone, polysulfone, and polycarbonate with tin-plated zinc alloy terminals. The package is a blade ATO/ATC form factor requiring a holder for mounting. Standard package quantity is 2000 pieces.

0257005.PXPV Quick Information

Product Type: Fuse
Series: ATO
Canonical Name: Littelfuse ATO Blade Fuse, 5A, 32V, Fast Blow
Subcategory: Blade Fuse

0257005.PXPV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0257005.PXPV Features

  • Rated 5A at 32VDC for automotive use.
  • Fast blow response for sensitive circuits.
  • Interrupting rating of 1000A at 32VDC.
  • Operating temperature range -40°C to +105°C.
  • Complies with ISO 8820-3 and UL 248.

0257005.PXPV Applications

  • Protects automotive electrical circuits.
  • Used in trucks and passenger vehicles.
  • Suitable for low voltage electronic applications.
  • Ideal for aftermarket fuse replacement.

0257005.PXPV FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 0257005.PXPV?

5 A

What is the voltage rating?

32 VDC

What is the breaking capacity?

1000 A at 32 VDC

What is the response time?

Fast Blow

What is the package type?

Blade, ATO/ATC

What is the operating temperature range?

-40°C to +105°C

What standards does this fuse comply with?

ISO 8820-3, UL 248 Special Purpose Fuses
