Mfr Part #:

02400113P

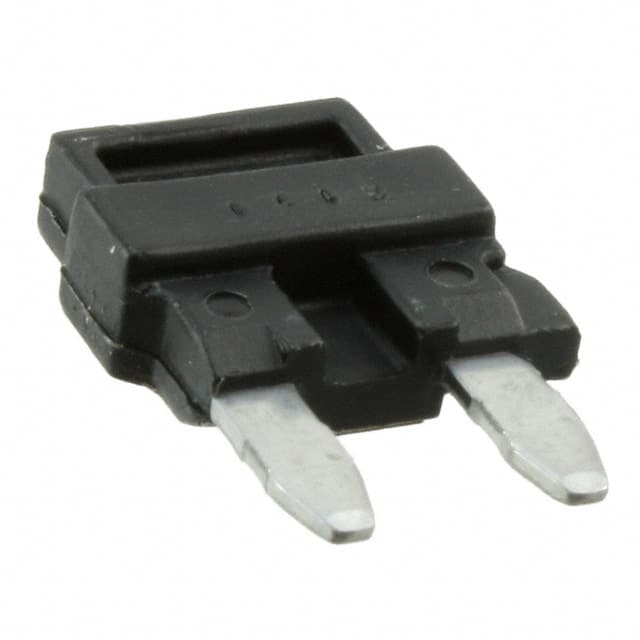

The Littelfuse 02400113P is a MINI Diode designed for automotive applications. It features a 1A current rating and 400V peak inverse voltage.

Stock on Request

02400113P Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Littelfuse Inc.
Accessory Type	Mini® Diode, Blade
Body Material	Thermoplastic
Current Rating	1 A
For Use With	Automotive
Operating Temperature	-40°C to +85°C
Power Rating	1/4 W

View Similar Products (0)

02400113P Description

Short technical summary and product information.

The Littelfuse 02400113P is a MINI Diode suitable for automotive applications. This component operates within a temperature range of -40°C to +85°C and has a maximum power rating of 1/4 W.

Key electrical specifications include a current rating of 1A and a peak inverse voltage of 400 Volts. The diode is constructed with a thermoplastic body and C.R.S. (Ni/Zn Plated) terminals, offering a terminal retention force of 25 N.

This diode is part of Littelfuse's MINI Diode series, designed for reliability in demanding environments. Its specifications make it a suitable choice for various automotive circuits requiring a compact and robust diode solution.

02400113P Quick Information

Product Type: Diode

Series: Mini

Canonical Name: Littelfuse Inc. 02400113P MINI Diode

Subcategory: MINI Diode

02400113P Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

02400113P Features

1A current rating for automotive use.
400V peak inverse voltage capability.
Operates from -40°C to +85°C.
Durable thermoplastic body construction.
1/4W maximum power rating.

02400113P Applications

Used in low-power rectifier circuits.
For DC blocking and clamping applications.
Suitable for automotive electronics protection.
Ideal for power supply input rectification.

02400113P FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the 02400113P diode?

The operating temperature range is -40°C to +85°C.

What is the current rating of the 02400113P diode?

The current rating is 1A.

What is the peak inverse voltage for the 02400113P diode?

The peak inverse voltage is 400 Volts.

What is the power rating of the 02400113P diode?

The maximum power rating is 1/4 W.

What is the body material of the 02400113P diode?

The body material is Thermoplastic.

What is the terminal material for the 02400113P diode?

The terminal material is C.R.S. (Ni/Zn Plated).
