| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Cold Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package Type | |
| Power Dissipation | |
| Response Time | |
| Tape & Reel | |
| Voltage Drop | |
| Voltage Rating |

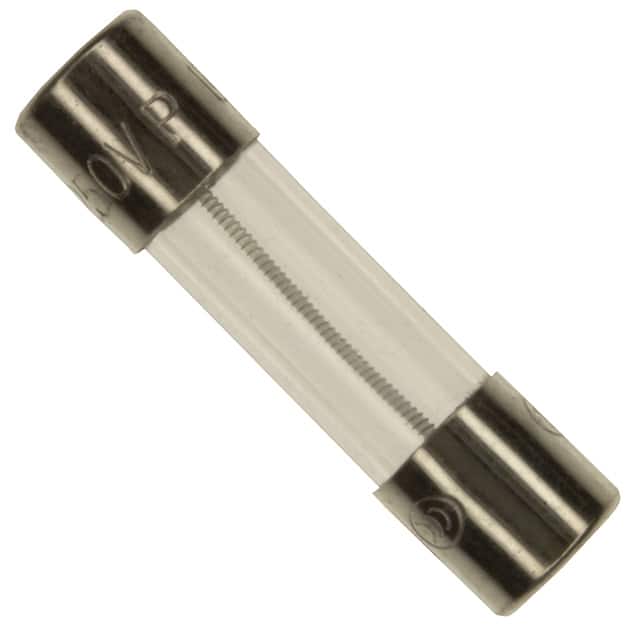

The Littelfuse 02133.15MXP is a 5x20mm glass cartridge fuse from the 213 series, designed for time-lag (slow blow) overcurrent protection. It is rated for 3.15A at 250VAC and features a breaking capacity of 35A at 250VAC. This fuse requires a holder for mounting.
Electrical characteristics include a nominal cold resistance of 0.0231 Ω, a melting I²t of 202 A²s, and a maximum voltage drop of 100 mV at rated current. Maximum power dissipation at 1.5 times rated current is 1.6 W. The operating temperature range is -55°C to 125°C.
This fuse is RoHS compliant and lead-free, with agency approvals from BSI, CCC, CE, CSA, PSE, SEMKO, UR, and VDE, confirming conformance to IEC 60127-2, UL/CSA 248-14, and GB 9364 standards. The 213 series offers both cartridge and axial lead versions, with the 02133.15MXP being the cartridge variant.
3.15 A.
250 V.
35 A at 250 V AC.
Slow blow (time-lag).
5 mm x 20 mm cartridge.
