| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

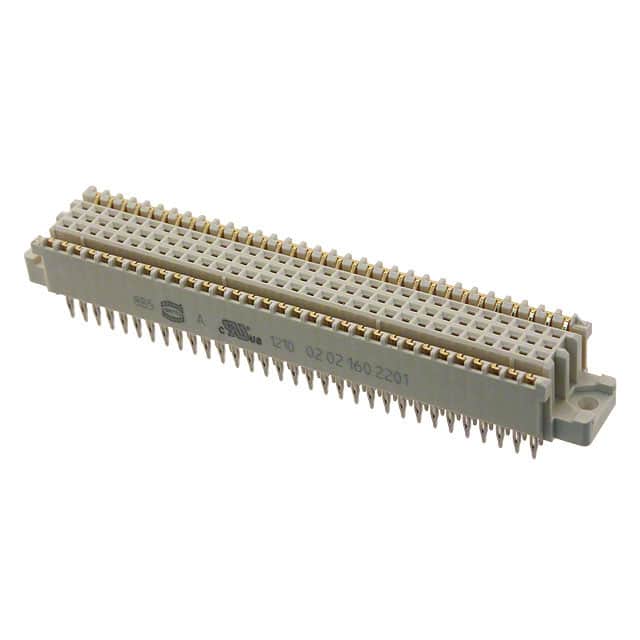

The Harting 02021602201 is a DIN 41612 receptacle connector designed for backplane applications. It offers 160 positions total, comprising 96 signal contacts and 64 ground contacts, arranged in 5 rows with a 2.54mm pitch. The connector uses a through hole mounting style with press-fit termination, ensuring reliable solderless connections in high-density backplane systems. This connector is rated for Class 2 performance per DIN 41612 standards. The female socket contacts accept mating male pins. The press-fit termination eliminates the need for soldering, reducing assembly time and improving reliability. Typical applications include telecommunications, data communications, and industrial control systems where high-density backplane interconnections are required.
160 positions (96 signal + 64 ground).
2.54mm (0.100").
Through hole.
5 rows.
Press-fit.
Receptacle, Female Sockets.
Class 2 per DIN 41612.
