| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | 160 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Features | |
| Lead Spacing | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

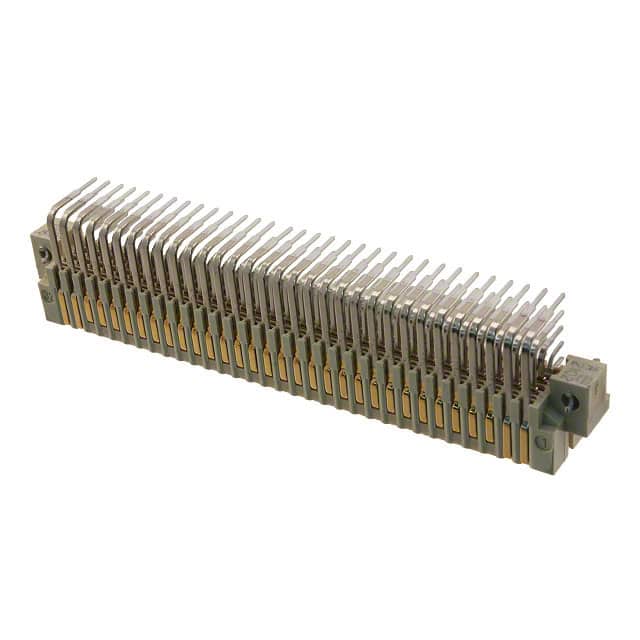

The Harting 02011602102 is a DIN 41612 header connector designed for backplane and rack-and-panel applications. It features 160 positions arranged in 5 rows, with a configuration of 96 signal pins plus 64 ground pins, all loaded. The connector uses male pin contacts with a standard 2.54mm (0.100") pitch.
This connector is mounted through hole with a right-angle orientation, making it suitable for perpendicular board-to-board connections. Termination is via solder, ensuring reliable electrical and mechanical joints. The connector includes mounting clips for secure attachment to the PCB.
The part is classified as Level/Class 2, indicating standard industrial quality and performance requirements. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited floor life).
It has 160 positions total, configured as 96 signal pins plus 64 ground pins.
The pitch is 2.54mm (0.100").
It is through hole, right angle mounting.
It uses solder termination.
Yes, it includes mounting clips.
It is rated Level/Class 2.
