| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Lead Spacing | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style |

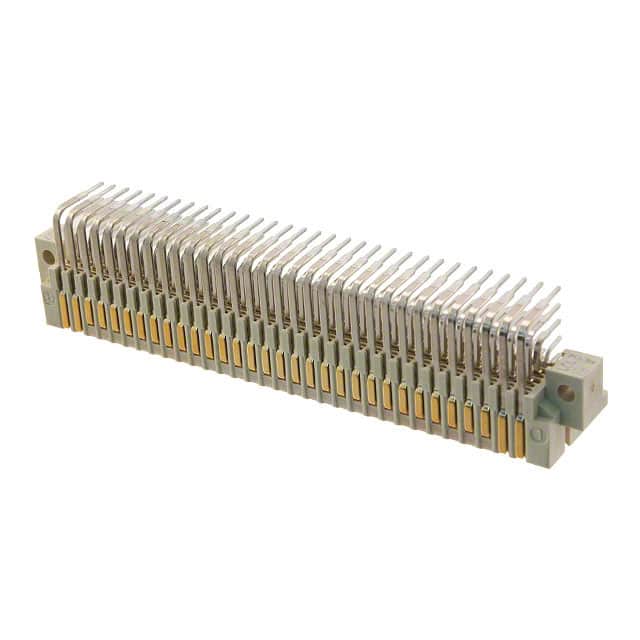

The Harting 02011602101 is a DIN 41612 header connector featuring 160 male pins arranged in 5 rows. The pinout comprises 96 signal positions and 64 ground positions, all loaded. The connector uses a 2.54mm (0.100") pitch and is designed for through hole, right angle mounting with solder termination.
This connector is classified as Level/Class 2, indicating a standard level of performance and reliability suitable for many industrial and commercial backplane applications. The 5-row configuration provides high-density interconnection in a compact footprint.
The right angle orientation allows the connector to be mounted parallel to the PCB surface, making it ideal for mezzanine or daughtercard connections where space is constrained. The through hole solder termination ensures a robust mechanical and electrical connection.
Header, Male Pins.
160 positions total: 96 signal plus 64 ground.
2.54mm (0.100").
Through hole, right angle.
Solder.
Level/Class 2.
