| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
603 pcs
|
603 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination |

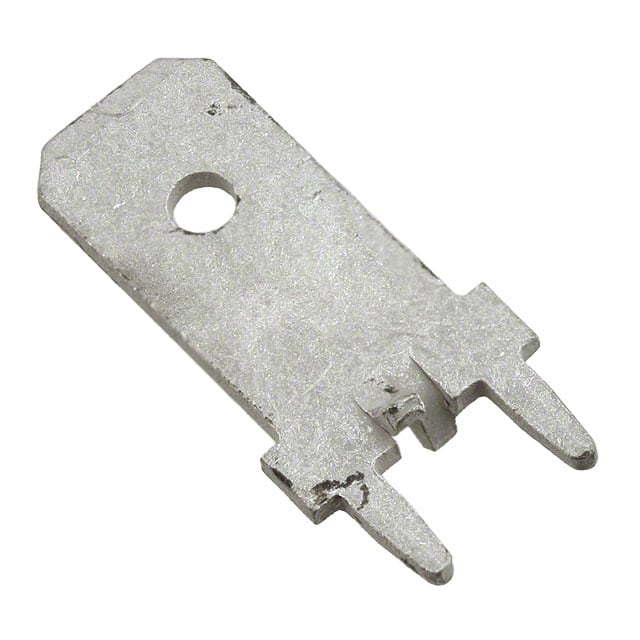

The Molex 0197054003 is a standard male quick connect tab terminal intended for solder termination. It features a tab width of 0.250" (6.35mm) with a tab thickness of 0.032" (0.81mm) and a tab length of 0.470" (11.94mm). The overall length of the terminal is 17.96mm.
Constructed from brass with a tin contact finish, this terminal offers reliable electrical conductivity and solderability. The non-insulated design is suitable for applications where insulation is not required or where additional insulation is applied separately.
The component is designed for through-hole mounting and uses solder termination. It is classified under the Quick Connects, Quick Disconnect Connectors category, making it suitable for wire-to-board or board-to-board connections requiring a quick-connect interface.
The tab width is 0.250" (6.35mm).
Through hole with solder termination.
The contact material is brass with a tin finish.
No, it is a non-insulated terminal.
It is a male terminal.
