| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,350 pcs
|
2350 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

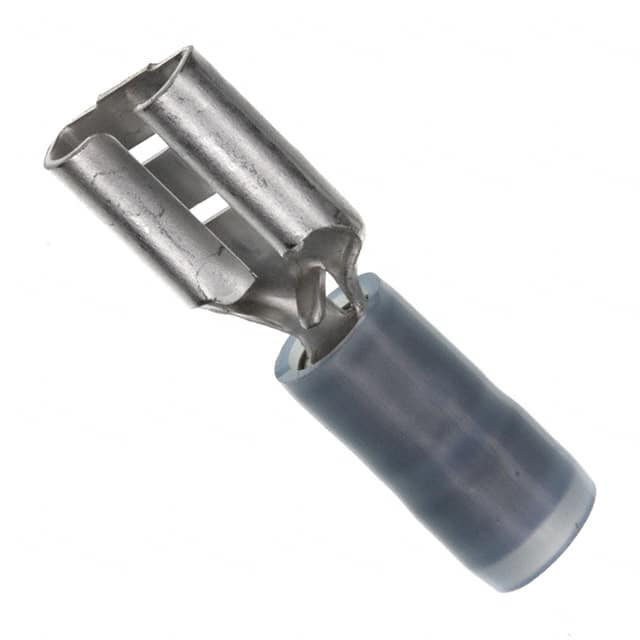

The Molex 0190190033 is a standard quick disconnect receptacle designed for 14-16 AWG wire. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, making it suitable for a wide range of quick disconnect applications. The contact is made of brass with a tin finish, ensuring good conductivity and corrosion resistance.
The connector uses crimp termination for secure wire attachment and has a non-mating end insulation with a blue color. The overall length is 21.97mm (0.865"). It is designed for free hanging (in-line) mounting, providing flexibility in wiring harnesses and panel installations.
This component is RoHS3 compliant and has an MSL of 1 (unlimited). It is also REACH unaffected. However, these compliance statuses are unverified and should be confirmed with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
| 10+ | $0.44 | $0.44 |
| 25+ | $0.41 | $0.41 |
| 50+ | $0.39 | $0.39 |
| 100+ | $0.37 | $0.37 |
| 250+ | $0.35 | $0.35 |
| 500+ | $0.33 | $0.33 |
| 1,500+ | $0.31 | $0.31 |
| 3,000+ | $0.30 | $0.30 |
| 4,500+ | $0.29 | $0.29 |
| 7,500+ | $0.28 | $0.28 |
| 10,500+ | $0.27 | $0.27 |
| 15,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free Hanging (In-Line).
14-16 AWG.
0.250 inch (6.35mm).
Crimp.
Female.
Brass with tin plating.
RoHS3 Compliant (unverified).
