| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Type | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Crimp Quality Equipment | |
| Engineering Number | |
| Failure Rate | |
| Flammability Rating | |
| Gender | |
| Glow-Wire Compliant | |
| Halogen Free | |
| Insulation | |
| Length | |
| Maximum Voltage | |
| Mounting Type | |
| Net Weight | |
| Operating Temperature Range | |
| Orientation | |
| Packaging Type | |
| Polarized to Mating Part | |
| Product Name | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Type | |
| UPC | |
| Wire Gauge | |
| Wire Insulation Diameter |

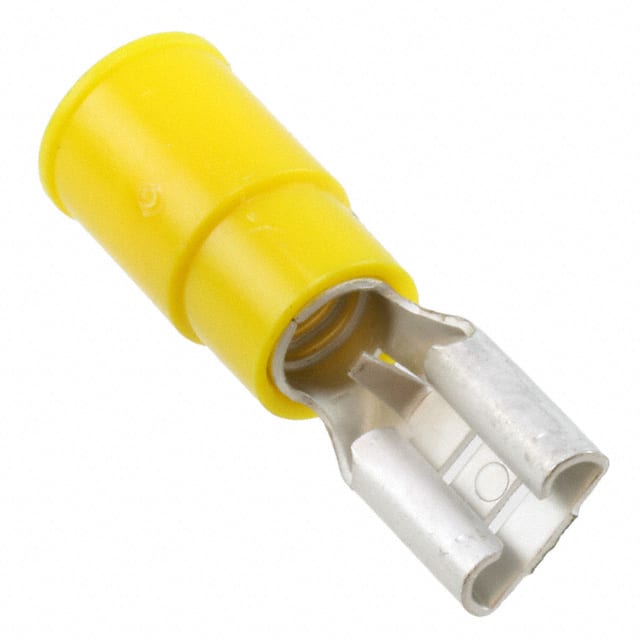

The Molex 0190170050 is an InsulKrimp™ Quick Disconnect terminal designed for 10-12 AWG wire. It features a female gender, a 6.35mm tab width, and a 0.81mm tab thickness. The terminal is rated for a maximum voltage of 600V and an operating temperature range of -50°C to +105°C.
The terminal is made of brass with an electro-tin plating and has a PVC insulation that is non-mating end insulated. It uses a closed barrel and is terminated via crimp. The packaging is adhesive tape on reel.
This part is part of the Molex 19017 series and is RoHS compliant and REACH SVHC not contained. It is not low-halogen and not glow-wire compliant.
The terminal is designed for 10-12 AWG wire.
The maximum voltage rating is 600V.
The operating temperature range is -50°C to +105°C.
The tab width is 6.35mm and the tab thickness is 0.81mm.
The contact material is brass with an electro-tin finish.
Yes, it is RoHS compliant.
The packaging type is adhesive tape on reel.
