| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Housing Material | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire size |

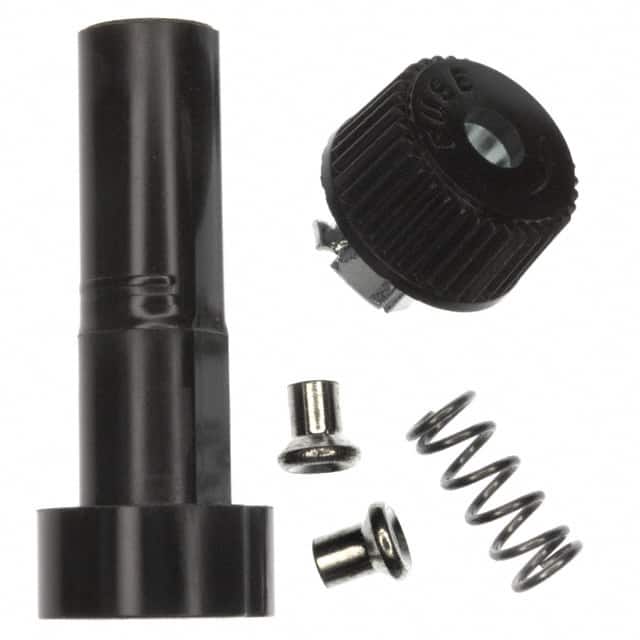

The 01550009ZXU is an in-line cartridge fuse holder designed by Littelfuse for low-voltage applications up to 32V. It accommodates 1/4" x 7/8" (6.35mm x 22.23mm) cartridge fuses such as the SFE-7.5 and SFE-9, supporting a continuous current rating of 9A.
The holder features a free-hanging (in-line) mounting style with crimp termination suitable for #14 AWG stranded wire. The housing is made of black thermoplastic with UL94 V-2 flame rating, and the brass contact rivets have a tin finish for reliable conductivity. The operating temperature range spans -40°C to +75°C, making it suitable for various environmental conditions.
Part of the 155100 Series, this unassembled fuse holder does not include a fuse or wire, allowing custom assembly. It is ideal for automotive and industrial circuits that require a simple, cost-effective in-line fuse protection solution.
9 A.
32 V.
0.25" Dia x 0.875" L (6.35mm x 22.23mm), for 7AG, 1/4" x 7/8" (SFE-7.5, 9) fuses.
-40 to 75 °C.
Crimp.
Yes, RoHS3 compliant (unverified).
Free hanging (in-line).
