| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,809 pcs
|
26809 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,470 pcs
|
1470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,054 pcs
|
1054 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| SVHC Present | |
| Tape & Reel | |
| Voltage Rating | |
| Voltage Rating (AC/DC) | |
| Width |

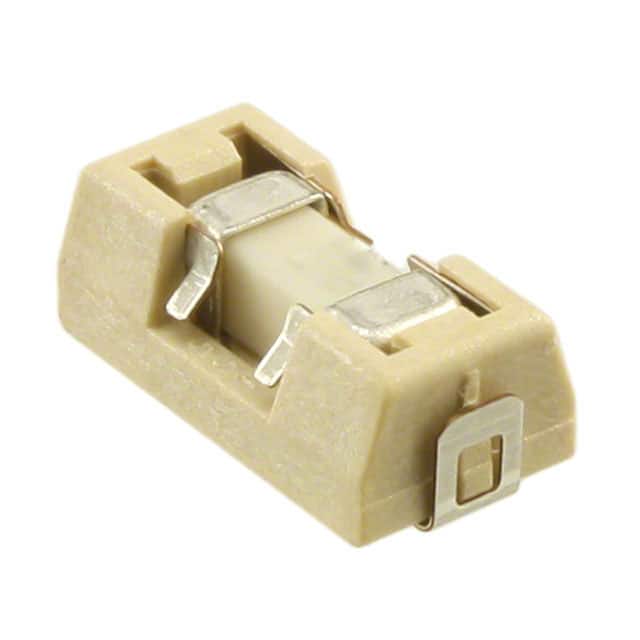

The Littelfuse 0154010.DR is a 10A, 125V AC/DC fast blow board mount fuse from the 154 Series OMNI-BLOK family. It features a surface mount package (2-SMD, square end block with holder) and requires a holder for installation. The fuse offers a breaking capacity of 35A AC and 50A DC, with a melting I²t of 26.46. It operates over a wide temperature range of -55°C to 125°C.
This fuse is designed for efficient installation and easy replacement without exposing the PC board to solder heat. It is RoHS compliant and halogen-free, with agency approvals from PSE and UL. The compact dimensions (9.73mm x 5.03mm x 3.81mm) make it suitable for space-constrained applications.
Typical applications include overcurrent protection in power supplies, industrial controls, and consumer electronics where fast-acting protection is required. The fuse is available in tape and reel packaging for automated assembly.
10A.
125V AC/DC.
35A AC and 50A DC.
Fast blow.
2-SMD square end block with holder.
-55°C to 125°C.
Yes, RoHS3 compliant.
