| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

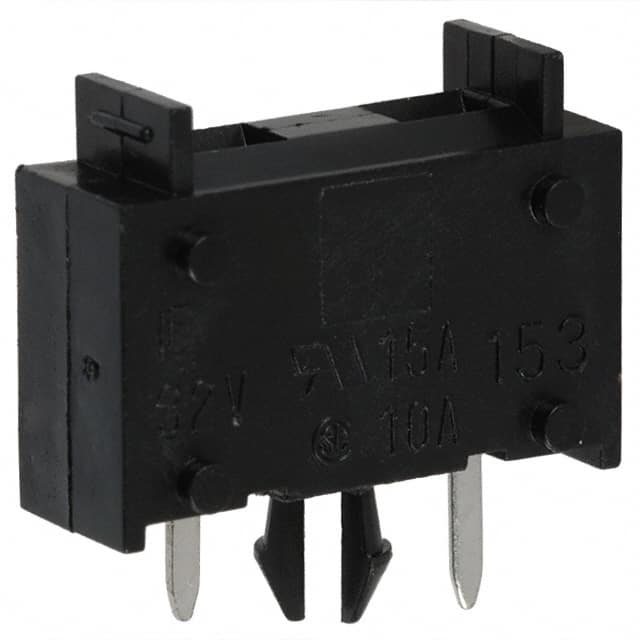

The Littelfuse MINI 153-PC Series 01530008Z is a single-circuit, vertical PCB fuse holder designed for MINI blade fuses (ATM size). It accommodates fuses with dimensions 0.433" L x 0.152" W (11.00mm x 3.85mm) and is rated for continuous operation at 15 A with a maximum current of 20 A at 32 V. The through hole mounting style uses PC pin terminals for reliable soldering to the PCB. The holder features a circuit board locking anchor for secure mechanical bonding and standoffs that allow for PCB washing after assembly. The thermoplastic body is UL 94 V-0 rated for flame resistance, and the contact clip is made of copper alloy with a tin-plated finish for corrosion resistance. This fuse holder is suitable for automotive PCB applications, including protection of control systems, navigation, entertainment, and sensor circuits.
The fuse holder has a continuous current rating of 15 A and a maximum rating of 20 A.
The voltage rating is 32 V.
It accepts MINI blade fuses (ATM size) with dimensions 0.433" L x 0.152" W (11.00mm x 3.85mm).
It is a through hole mount with PC pin terminals, oriented vertically on the PCB.
It is listed as RoHS3 compliant, but this information is unverified.
The contact is made of copper alloy with a tin-plated finish.
