| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
61 pcs
|
61 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Thickness | |
| Cable Type | |
| Contact Plating | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Number of Conductors | |
| Pitch | |
| Temperature Rating | |
| Termination Style |

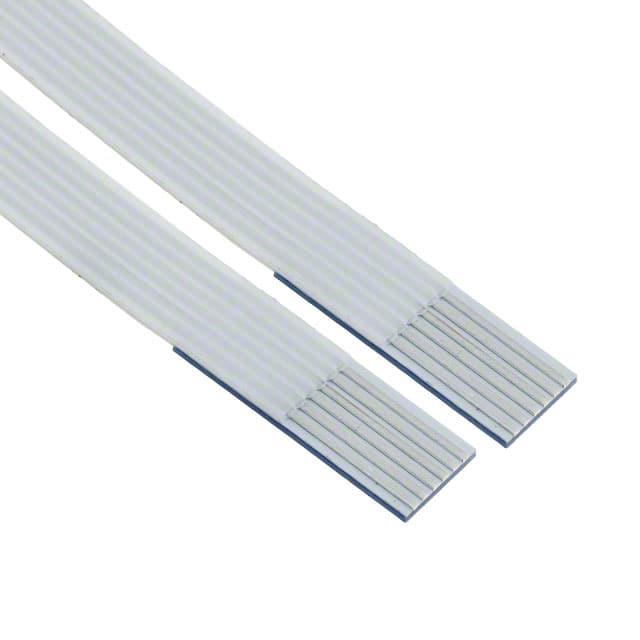

The Molex 0152660055 is a 6-conductor flat flex cable (FFC) jumper from the Premo-Flex series, designed for board-to-board connections in space-constrained electronic assemblies. It features a 0.50mm conductor pitch and a cable thickness of 0.27mm (series 15266). The cable uses polyester insulation and tin-plated contacts, with termination style configured as top and backers on both sides.
The jumper is rated for temperatures up to +105°C, making it suitable for applications with moderate thermal demands. It supports both FFC and FPC cable types. As an off-the-shelf standard jumper, it reduces lead times compared to custom cables. Typical uses include interconnections between two PCBs in consumer electronics, industrial controls, or automotive modules.
The cable is rated for continuous operation up to +105°C. The minimum operating temperature is not specified.
The conductor pitch is 0.50mm.
6 conductors.
The datasheet indicates RoHS3 compliance, but this status is unverified. The part also meets REACH requirements per the datasheet.
The series 15266 has a cable thickness of 0.27mm.
The attribute value is 4.00mm (0.157 inches), but the product description lists a 3-inch length. Verify the correct length with the datasheet or distributor.
