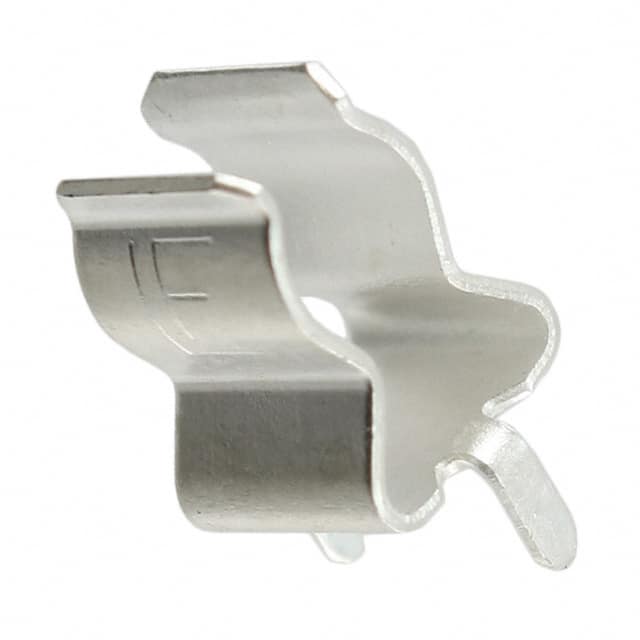

01220087Z Cartridge fuse clip for 1/4" diameter fuses, rated 30A and 250V. Through-hole mounting with PC pin termination, silver-plated beryllium copper contact.
Mfr Part #:

01220087Z

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Cartridge fuse clip for 1/4" diameter fuses, rated 30A and 250V. Through-hole mounting with PC pin termination, silver-plated beryllium copper contact.
✓ Total Stock: 40 pcs

01220087Z Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

01220087Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Current Rating
Current Rating (Amps)
Failure Rate
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Lead Style
Mounting Type
Number of Circuits
Orientation
Tape & Reel
Termination Style
Voltage
Voltage Rating
View Similar Products (0)

01220087Z Description

Short technical summary and product information.

The Littelfuse 01220087Z is a cartridge fuse clip from the 122 series, designed for 1/4" diameter fuses. It is rated at 30A and 250V. The clip is made of beryllium copper with silver plating. Mounting is through-hole with PC pin termination, horizontal orientation. It is compatible with Littelfuse fuse series 312, 313, 314, 326, 505, 506, 508. RoHS3 compliant.



The 122 series offers higher current capacity than the 102 series. Bulk packaging.

01220087Z Quick Information

Product Type: Cartridge Fuse Clip
Series: 122
Canonical Name: Littelfuse 122 Series Cartridge Fuse Clip, 0.25" Dia, 30A, 250V, PC Pin, Through Hole
Subcategory: Cartridge Fuse Clip

01220087Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

01220087Z Features

  • Rated 30A at 250V for high current applications.
  • Silver-plated beryllium copper contact for low resistance.
  • Through-hole mounting with PC pin termination.
  • Compatible with 1/4" diameter cartridge fuses.
  • Horizontal orientation for PCB layout flexibility.

01220087Z Applications

  • Used for mounting 1/4" diameter cartridge fuses on PCBs.
  • Suitable for through-hole circuit board assembly.
  • Designed for high current protection up to 30A.

01220087Z FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 01220087Z?

30A.

What is the voltage rating of the 01220087Z?

250V.

What is the mounting type and termination of the 01220087Z?

Through-hole mounting with PC pin termination.

What fuse sizes and series are compatible with the 01220087Z?

It accepts 1/4" diameter fuses, compatible with Littelfuse series 312, 313, 314, 326, 505, 506, 508.

What is the contact material and finish of the 01220087Z?

Beryllium Copper with Silver plating.

What is the packaging of the 01220087Z?

Bulk packaging, not tape and reel.

Is the 01220087Z RoHS compliant?

RoHS3 Compliant.
