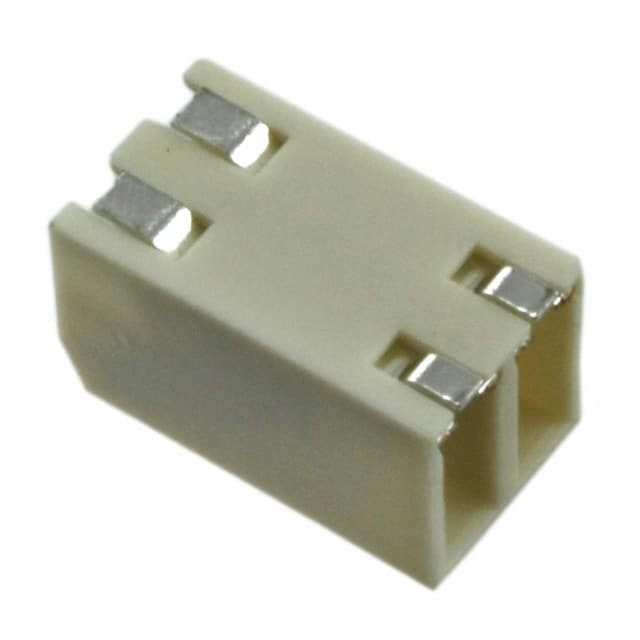

009276002021106 This is a 2-position wire-to-board terminal block with 2.5mm pitch, screwless push-in spring termination, rated 6A/250V. It features surface mount mounting and horizontal mating orientation.
Mfr Part #:

009276002021106

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
This is a 2-position wire-to-board terminal block with 2.5mm pitch, screwless push-in spring termination, rated 6A/250V. It features surface mount mounting and horizontal mating orientation.
✓ Total Stock: 1,785 pcs

009276002021106 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,785 pcs
On Request
1785 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

009276002021106 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
SVHC Present
Tape & Reel
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

009276002021106 Description

Short technical summary and product information.

The 009276002021106 is a 2-position wire-to-board terminal block manufactured by Kyocera AVX. It features a 2.5mm pitch and utilizes a screwless push-in spring wire termination, accommodating 18-24 AWG wire. The block is rated for 6 Amps at 250 Volts.



The mating orientation is horizontal with the board, making it suitable for side-entry applications. The housing is white and the mounting type is surface mount, enabling automated assembly. This component is RoHS3 compliant, with MSL 1 (unlimited) and REACH unaffected status, though these compliance details have low verification confidence.



Designed for compact wire-to-board connections, this terminal block is ideal for applications requiring reliable, tool-less termination in space-constrained environments. The push-in spring mechanism simplifies field installation and reduces assembly time compared to traditional screw terminals.

009276002021106 Quick Information

Product Type: Wire-to-Board Terminal Block
Canonical Name: 2 Position Wire-to-Board Terminal Block, 2.5mm Pitch, Surface Mount, Screwless Push-In Spring
Subcategory: 2 Position

009276002021106 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

009276002021106 Features

  • 2 positions with 2.5mm pitch.
  • Screwless push-in spring wire termination.
  • Rated for 6A at 250V AC/DC.
  • Surface mount with horizontal mating orientation.
  • Accepts 18-24 AWG wire gauge.

009276002021106 Applications

  • Compact wire-to-board connections in control systems.
  • Automated assembly for high-volume production.
  • Field wiring for industrial sensor modules.
  • Power distribution in LED lighting fixtures.
  • Reliable connections in HVAC controllers.

009276002021106 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

2 positions per level, 1 level.

What is the pitch of this terminal block?

2.5mm (0.098 inches).

What is the current rating?

6 Amps.

What is the voltage rating?

250 Volts.

What is the mounting type?

Surface mount.

What type of wire termination does this block use?

Screwless - Leg Spring, Push-In Spring.

What wire gauge is supported?

18-24 AWG.
