| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Halogen Free | |
| Housing Color | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

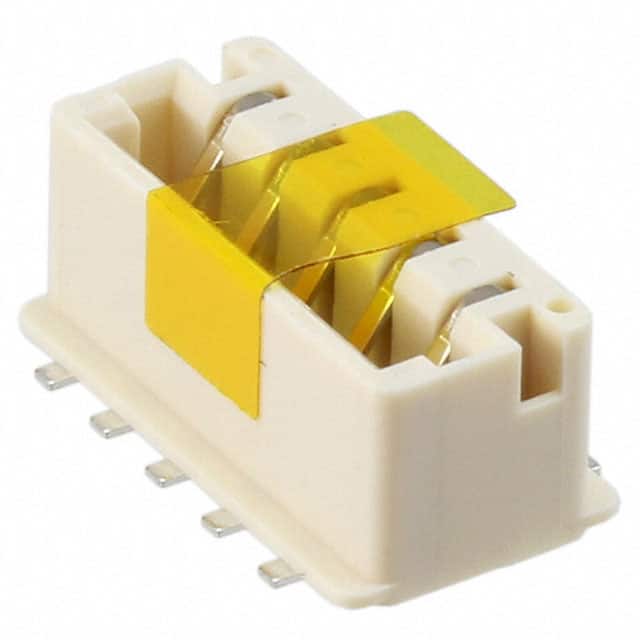

The Kyocera AVX 009159005551906 is a solid state lighting connector assembly designed for board-to-board and card edge applications. This receptacle features 5 positions with a 2.00mm pitch, making it suitable for compact lighting designs.
The connector uses surface mount solder termination and is rated for an operating temperature range of -40°C to 120°C. Contacts are made of copper alloy with gold finish for reliable electrical performance. The housing is constructed from halogen-free, glass-filled polyamide (PA4T) in white.
This component supports PCB thicknesses of 0.80mm or 1.60mm and includes a pick and place cap for automated assembly. It is designed for use in solid state lighting systems where a reliable, low-profile interconnect is required.
This connector has 5 positions.
The pitch is 2.00mm.
It is a surface mount connector with solder termination.
The operating temperature range is -40°C to 120°C.
The contacts have a gold finish.
