| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Durability | |
| Insulator Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Reel Quantity | |
| SVHC Present | |
| Tape & Reel | |
| Voltage Rating |

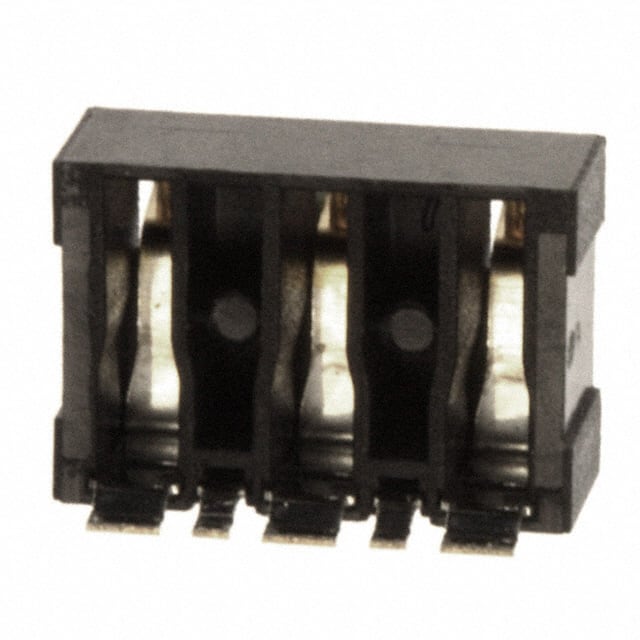

The Kyocera AVX 009155003301006 is a 3 position right angle surface mount battery connector from the 9155 series. It features a 3.00mm pitch and is designed for compact portable devices. The connector is rated for 3A per contact and 125VAC, with a durability of 5000 mating cycles. Contacts are made of beryllium copper with gold plating over nickel, and the insulator is glass-filled nylon 46 rated UL94 V-O. The operating temperature range is -40°C to +125°C. The connector includes additional SMT anchor brackets for stability on the PCB. It is supplied in tape and reel packaging with 800 pieces per reel.
3A per contact.
125 VAC.
3.00mm.
5000 cycles.
-40°C to +125°C.
Surface mount, right angle.
