| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Durability | |
| Insulator Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Plating | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

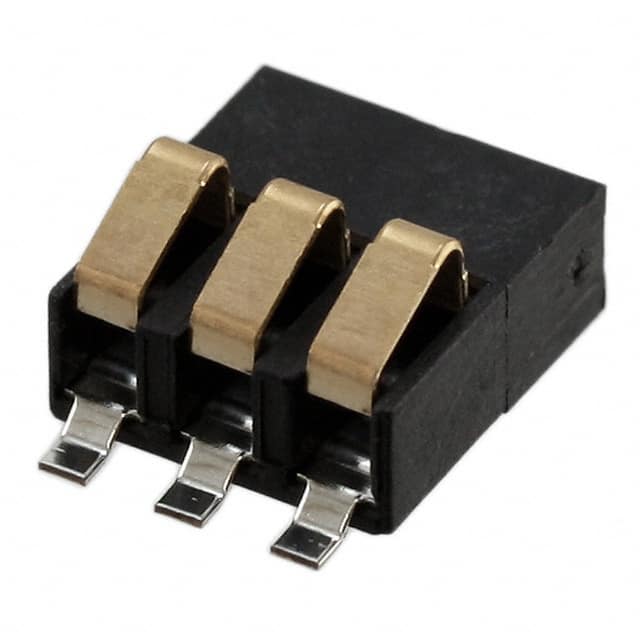

The Kyocera AVX 009155003001016 is a battery contact connector from the 9155 series, featuring 3 contacts on a 2.50mm pitch. Designed for battery connections in mobile equipment, it offers a compact surface-mount package with tape and reel packaging.
Electrical ratings include 3A per contact and 125VAC. Contacts are made of beryllium copper with gold over nickel plating (0.38µm), providing durability of 5000 mating cycles. The insulator is glass-filled nylon 46 with UL94 V-0 flammability rating, and the operating temperature range is -40°C to +125°C.
This connector is suitable for a variety of portable devices including mobile phones, PDAs, medical equipment, and industrial electronics. The optional retaining bracket provides additional PCB retention strength. Contact height options (1.20mm to 2.60mm) are available within the series but not specified for this exact part number.
3 contacts.
2.50mm.
3A per contact.
125VAC.
Surface Mount.
-40°C to +125°C.
Beryllium Copper with Gold over Nickel plating.
