| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Durability | |
| Failure Rate | |
| Insulator Height | |
| Insulator Material | |
| Leader Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Reel Quantity | |
| Standard Package Qty | |
| Tape & Reel | |
| Trailer Length | |
| Voltage Rating |

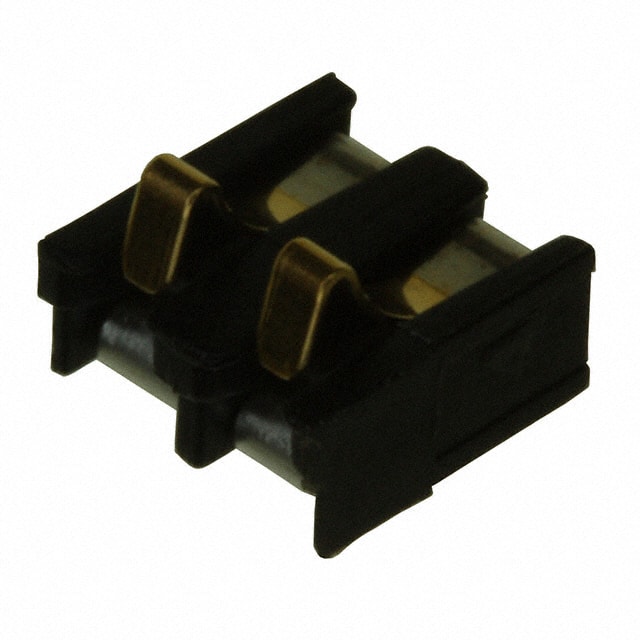

The Kyocera AVX 009155002201006 is a 2 position battery contact connector from the 9155-200 reduced size series. It features a 2.50mm pitch, single row configuration, and surface mount mounting. The connector is rated for 3A per contact and 125VAC, with an operating temperature range of -40°C to +125°C. Contacts are made of beryllium copper with 15.0µin gold plating over nickel. The insulator is glass-filled nylon 46, UL94 HB rated. This connector is designed for applications requiring a compact, reliable battery connection and is rated for 5000 mating cycles. It is supplied in tape and reel packaging with a standard quantity of 2000 pieces.
2.50mm (0.098")
3A per contact
125VAC
Surface Mount
5000 cycles
-40°C to +125°C
Beryllium copper with 15.0µin gold plating
