| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Characteristic | |
| Current Rating | |
| Current Rating (Amps) | |
| Dimensions | |
| Endcaps Material | |
| Fuse Type | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Size | |
| Storage Conditions | |
| Tape & Reel | |
| Terminals Material | |
| Termination Material | |
| Voltage Rating | |
| Weight |

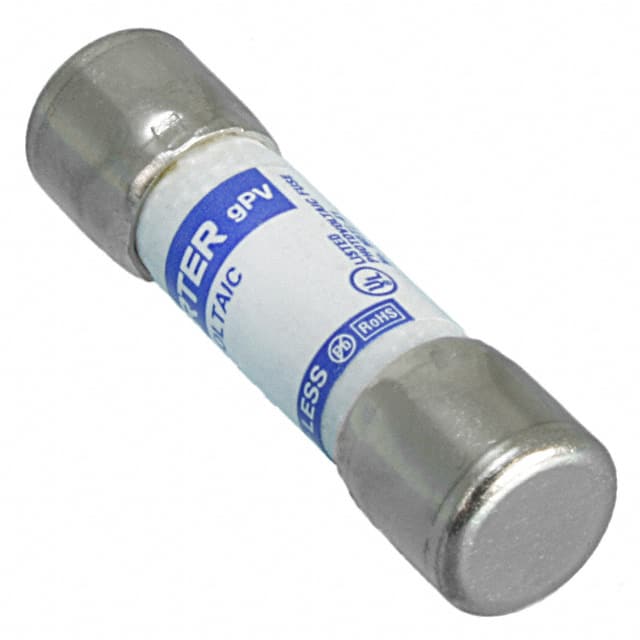

The Schurter 0090.0002 is a midget fuse from the ASO 10.3x38 series, designed specifically for photovoltaic applications. It is rated for 2A continuous current at 1000VDC and offers a high breaking capacity of 20kA at rated voltage. The fuse exhibits a gPV (photovoltaic) characteristic, meeting UL and IEC standards for solar string protection.
This fuse is housed in a standard 5AG (10.3mm x 38mm) cartridge package. It is available in a PCB/THT mounting version with tin-plated copper alloy terminals. The operating temperature range spans -50°C to 125°C, making it suitable for outdoor and harsh environment installations.
Typical applications include photovoltaic string fusing, inverters, battery charge controllers, and in-line protection in solar power systems. The fuse is UL and CSA recognized, and complies with IEC 61730-2 for PV module safety.
The fuse is rated for 1000VDC.
The breaking capacity is 20kA at 1000VDC.
The current rating is 2A.
It has a gPV (photovoltaic) characteristic.
The package is 5AG, 10mm x 38mm (Midget).
The operating temperature range is -50°C to 125°C.
The fuse is UL and CSA approved.
