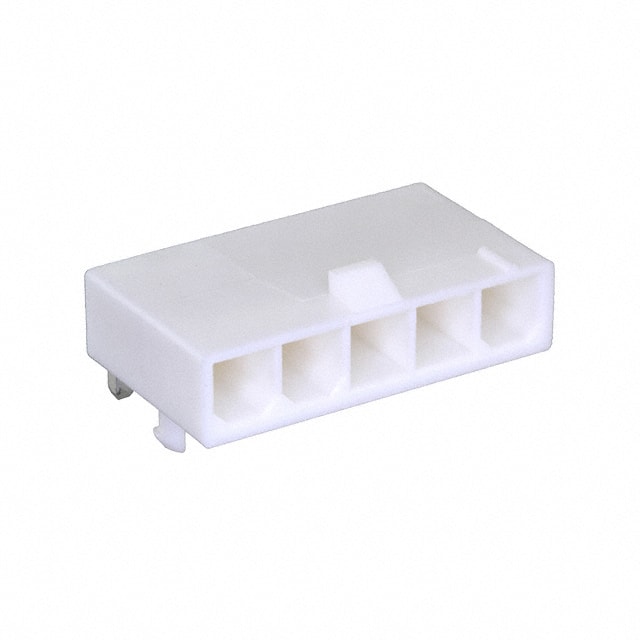

0039303058 Molex 0039303058 is a 5 position single row right angle shrouded header with 4.20mm pitch, through hole solder termination, and UL94 V-0 rated insulation.
Mfr Part #:

0039303058

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0039303058 is a 5 position single row right angle shrouded header with 4.20mm pitch, through hole solder termination, and UL94 V-0 rated insulation.
✓ Total Stock: 225 pcs
$ Price Range: $2.19 - $3.61

0039303058 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
225 pcs
On Request
225 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0039303058 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Shrouding
Style
Termination
View Similar Products (0)

0039303058 Description

Short technical summary and product information.

The Molex 0039303058 is a 5 position single row right angle shrouded header designed for board-to-cable/wire applications. It features a 4.20mm pitch and through hole mounting with solder termination. The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating. The insulation is made of Polyamide (PA66/Nylon 6/6) in natural color and is rated UL94 V-0 for flammability. Contacts are made of brass with a tin finish (30.0µin thickness) and have a square shape. The header also includes a board lock feature for additional retention. This component is suitable for power and signal interconnection in various electronic assemblies.

0039303058 Quick Information

Product Type: Header, Male Pins
Series: Mini-Fit Jr.
Canonical Name: Molex 0039303058 - 5 Position Single Row Right Angle Shrouded Header, 4.20mm Pitch
Subcategory: Shrouded Header

0039303058 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0039303058 Estimated Pricing

Qty Low High
1+ $3.61 $3.61
10+ $3.07 $3.07
400+ $2.36 $2.36
800+ $2.25 $2.25
1,200+ $2.19 $2.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

0039303058 Features

  • 5 position single row right angle header.
  • 4.20mm pitch for compact designs.
  • Shrouded 4-wall housing with locking ramp.
  • UL94 V-0 rated nylon insulation.
  • Tin-plated brass contacts for reliable connection.

0039303058 Applications

  • Board-to-cable/wire interconnection applications.
  • Power and signal distribution in electronic assemblies.
  • Industrial control and automation equipment.
  • Consumer electronics requiring secure locking connectors.

0039303058 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the Molex 0039303058 header?

The pitch is 4.20mm (0.165 inches).

How many positions does this header have?

It has 5 positions in a single row.

What is the mounting type for this connector?

Through hole, right angle mounting with solder termination.

What is the insulation material and flammability rating?

The insulation is Polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating.

Is this header shrouded?

Yes, it is fully shrouded with a 4-wall design and includes a locking ramp for secure mating.

What is the contact material and finish?

Contacts are made of brass with a tin finish of 30.0µin (0.76µm).
