| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
122 pcs
|
122 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Body Material | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| CCC | |
| Characteristic | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| Flammability | |
| Fuse Type | |
| Lead Spacing | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Rated Voltage (DC) | |
| Resistance to Soldering Heat | |
| Response Time | |
| Size | |
| Size / Dimension | |
| Solderability | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| UL | |
| VDE | |
| Voltage Rating |

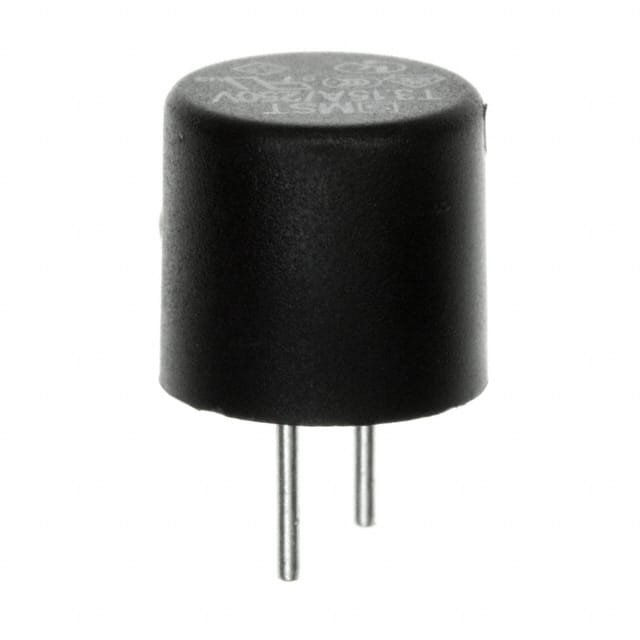

The Schurter 0034.6620 is a subminiature fuse from the MST 250 series designed for primary circuit protection on printed circuit boards. It is rated for 3.15A at 250VAC and 63VDC with a time-lag T (slow blow) characteristic, making it suitable for applications with inrush currents.
The fuse has a breaking capacity of 35A AC and 50A DC. It is housed in a radial, can, vertical package measuring 8.50 mm in diameter by 8.50 mm in height, with through-hole PCB pin terminals. The housing is made of thermoplastic rated UL 94V-0, and the terminals are tin-plated copper.
It carries approvals from CCC, cURus, KC, PSE/JET, and VDE, and is compliant with IEC 60127-3. The operating temperature range is -55°C to 125°C, and it meets climatic category 55/125/21 per IEC 60068-1.
The current rating is 3.15 A.
It is rated for 250 VAC and 63 VDC.
The breaking capacity is 35 A AC and 50 A DC.
It has a time-lag T (slow blow) response.
It comes in a radial, can, vertical package with through hole mounting (PCB pins).
It is approved by CCC, cURus, KC, PSE/JET, and VDE.
