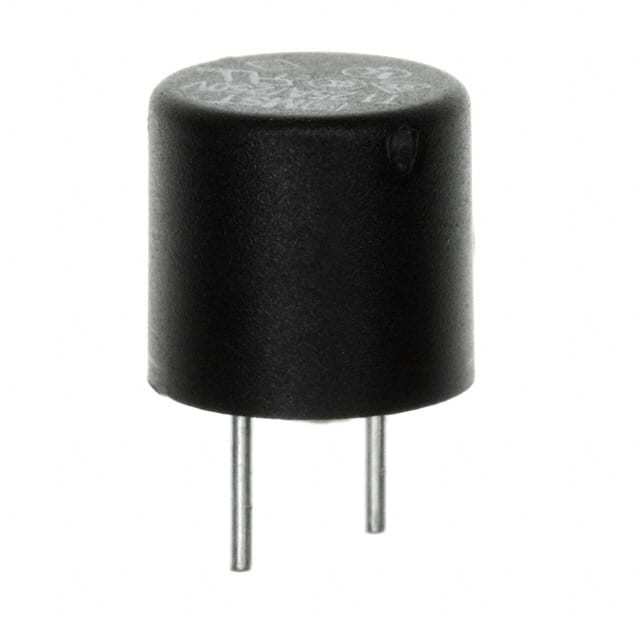

0034.6616 Schurter 0034.6616 is a subminiature, time-lag T, 1.25 A board mount fuse rated for 250 VAC and 63 VDC. It comes in a radial can, through hole package with a 8.5 mm diameter and height.
Mfr Part #:

0034.6616

Available from 2 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Schurter 0034.6616 is a subminiature, time-lag T, 1.25 A board mount fuse rated for 250 VAC and 63 VDC. It comes in a radial can, through hole package with a 8.5 mm diameter and height.
✓ Total Stock: 549 pcs

0034.6616 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
524 pcs
On Request
524 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0034.6616 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Breaking Capacity @ Rated Voltage
Current Rating
Current Rating (Amps)
Diameter
Fuse Type
Height
Housing Material
Lead Style
Melting I²t
Mounting Type
Operating Temperature
Package / Case
Response Time
Size
Tape & Reel
Voltage Rating
View Similar Products (0)

0034.6616 Description

Short technical summary and product information.

The Schurter Inc. 0034.6616 is a subminiature fuse from the MST 250 series, designed for primary protection on printed circuit boards. It has a time-lag (slow blow) characteristic and a current rating of 1.25 A. The fuse is rated for 250 VAC and 63 VDC with a breaking capacity of 35 A AC and 50 A DC. The housing is made of thermoplastic with UL 94V-0 flammability rating, and terminals are tin-plated copper. The package type is radial, can, vertical with through hole mounting. Key mechanical dimensions include a diameter of 8.50 mm and a height of 8.50 mm. The operating temperature range is -55°C to 125°C. This fuse carries approvals from CCC, cURus, KC, PSE/JET, and VDE.

0034.6616 Quick Information

Product Type: Board Mount Fuse
Series: MST 250
Canonical Name: Schurter Inc. 0034.6616 Subminiature Fuse, Time-Lag T, 1.25 A, 250 VAC, 63 VDC, Radial Can
Subcategory: Board Mount Fuse

0034.6616 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0034.6616 Features

  • Rated current 1.25 A, voltage 250 VAC / 63 VDC.
  • Slow blow (time-lag T) response characteristic.
  • Through hole mounting, radial can package.
  • Breaking capacity 35 A AC, 50 A DC.
  • UL 94V-0 flammability rated thermoplastic housing.

0034.6616 Applications

  • Primary protection on printed circuit boards.
  • Power supply adapters for laptops.
  • Switching mode power supplies for TVs and DVDs.

0034.6616 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of Schurter 0034.6616?

The current rating is 1.25 A.

What is the voltage rating of this fuse?

The voltage rating is 250 VAC and 63 VDC.

Is the fuse slow blow or fast acting?

It has a slow blow (time-lag T) response time.

What is the breaking capacity of the 0034.6616?

Breaking capacity is 35 A AC and 50 A DC.

What package and mounting type does this fuse use?

The fuse uses a radial, can, vertical package with through hole mounting.

What is the operating temperature range?

Operating temperature range is -55°C to 125°C.

What approvals does the 0034.6616 hold?

Approvals include CCC, cURus, KC, PSE/JET, and VDE.
