| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Body Material | |
| Breaking Capacity @ Rated Voltage | |
| Breaking Capacity AC | |
| Breaking Capacity DC | |
| Case Resistance | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Resistance to Soldering Heat | |
| Response Time | |
| Solderability | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Material | |
| Terminal Strength | |
| Termination Style | |
| Unit Weight | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC |

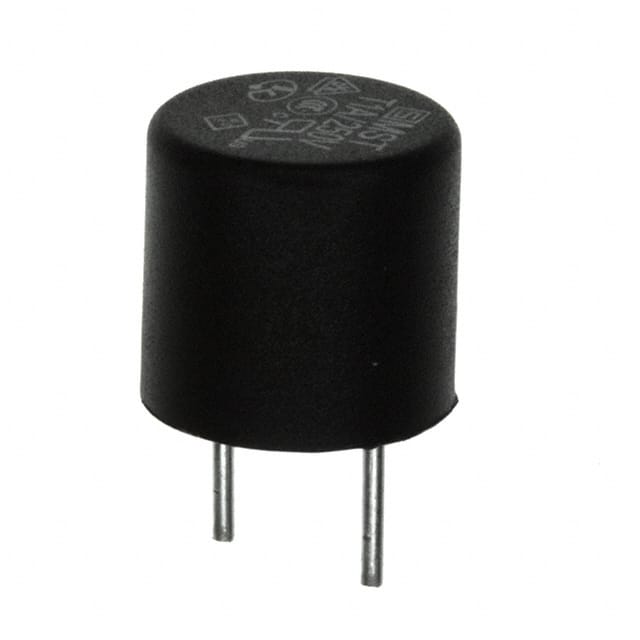

The Schurter 0034.6615 is a subminiature fuse from the MST 250 series, rated at 1A with a voltage rating of 250VAC and 63VDC. It features a time-lag T (slow-blow) characteristic, making it suitable for applications with inrush currents. The fuse has a breaking capacity of 35A AC and 50A DC.
This through-hole fuse comes in a radial, can, vertical package measuring 8.5 mm x 8.5 mm. The housing is made of thermoplastic rated UL 94V-0, and the terminals are tin-plated copper. It is designed for direct soldering onto printed circuit boards and is suitable for wave soldering.
The operating temperature range is -55°C to 125°C. The fuse carries approvals from CCC, cURus, KC, PSE/JET, and VDE. It is designed for primary protection on PCBs and is commonly used in power supply adapters and SMPS applications.
The current rating is 1 A.
The voltage rating is 250 VAC and 63 VDC.
The breaking capacity is 35 A AC and 50 A DC.
The response time is slow-blow (time-lag T).
It comes in a through-hole radial, can, vertical package measuring 8.5 mm x 8.5 mm.
The operating temperature range is -55°C to 125°C.
It carries CCC, cURus, KC, PSE/JET, and VDE approvals.
