| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| CCC | |
| Case Code | |
| Current Rating | |
| Current Rating (Amps) | |
| Dimensions | |
| Fuse Type | |
| Lead Spacing | |
| Lead Style | |
| Melting I2t | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| SVHC Present | |
| Tape & Reel | |
| UL | |
| VDE | |
| Voltage Rating | |
| Voltage Rating AC |

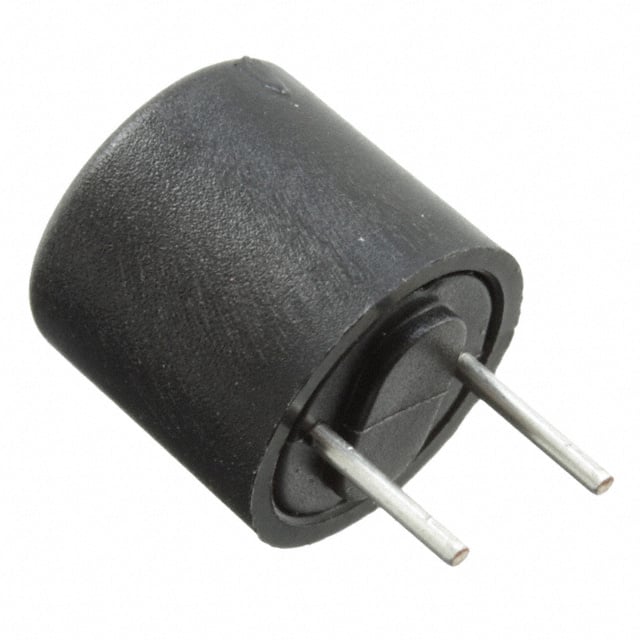

The Schurter 0034.6011 is a subminiature board mount fuse from the MSF 250 series. It is rated for 500mA at 250VAC with a fast blow response time. The fuse has a breaking capacity of 35A and a melting I²t of 0.09 A²s. It is designed for through hole mounting in a radial, can, vertical package measuring 8.5mm x 8.5mm.
This fuse operates over a temperature range of -40°C to 85°C and is approved by CCC, cURus, and VDE. The housing is made of thermoplastic with UL 94V-0 flammability rating, and terminals are tin-plated copper. It is suitable for direct soldering on printed circuit boards and complies with IEC 60127-3.
Applications include overcurrent protection in power supplies, industrial controls, and consumer electronics where fast acting protection is required.
500 mA
250 VAC
35A at rated voltage
Fast Blow
Radial, Can, Vertical (through hole)
-40°C to 85°C
0.09 A²s
