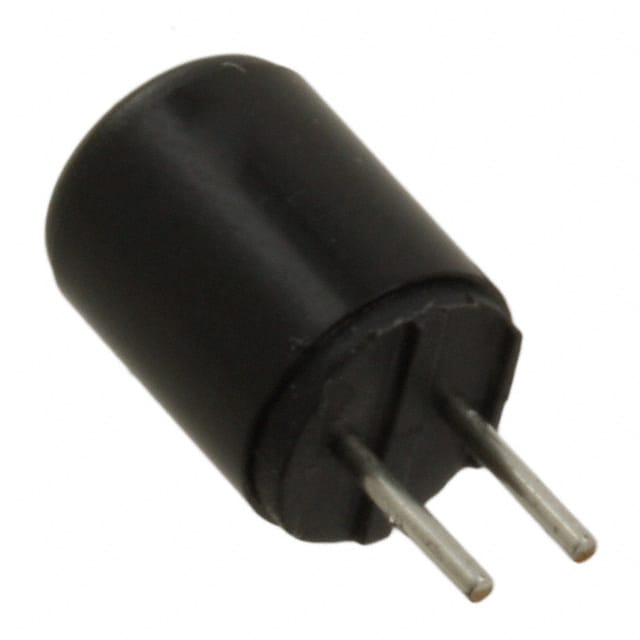

0034.4215 Board mount fuse rated 400 mA, 125 VAC/VDC, fast blow (Quick-Acting F), with 100 A breaking capacity. Through hole radial can package.
Mfr Part #:

0034.4215

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Board mount fuse rated 400 mA, 125 VAC/VDC, fast blow (Quick-Acting F), with 100 A breaking capacity. Through hole radial can package.
✓ Total Stock: 10 pcs

0034.4215 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0034.4215 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Breaking Capacity @ Rated Voltage
Current Rating
Current Rating (Amps)
Fuse Type
Halogen Free
Housing Material
Insulation Resistance
Lead Spacing
Melting I²t
Mounting Type
Operating Temperature
Response Time
SVHC Present
Storage Conditions
Tape & Reel
Voltage Rating
Weight
View Similar Products (0)

0034.4215 Description

Short technical summary and product information.

The Schurter 0034.4215 is a subminiature board mount fuse from the MSF 125 series, designed for direct soldering on printed circuit boards. It features a quick-acting (fast blow) characteristic, making it suitable for overcurrent protection in various electronic applications.



Electrical specifications include a current rating of 400 mA, voltage rating of 125 VAC and 125 VDC, and a breaking capacity of 100 A. The melting I²t is 0.013 A²s, providing fast response to overcurrent conditions.



The fuse is housed in a radial can package with a diameter of 6.4 mm and height of 8.8 mm. It is through hole mounted and has tin-plated copper terminals. The thermoplastic housing is rated UL 94V-0 for flammability. Operating temperature range is -25°C to 85°C, and storage conditions are 0°C to 40°C with max 70% relative humidity.



Compliance includes cURus approval (UL 248-14, CSA22.2 No. 248.14). The fuse meets MIL-STD-202 for vibration and mechanical shock, and has a solderability rating of 235°C / 2 sec and resistance to soldering heat of 260°C / 10 sec.

0034.4215 Quick Information

Product Type: Fuse
Series: MSF 125
Canonical Name: Fuse, Board Mount, Fast Blow, 400 mA, 125 VAC/VDC, Through Hole, Schurter 0034.4215
Subcategory: Board Mount Fuse

0034.4215 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

0034.4215 Features

  • Board mount fuse rated 400 mA.
  • Fast blow (quick-acting) time characteristic.
  • Rated for 125 VAC and 125 VDC.
  • Through hole radial can package.
  • cURus approved for safety compliance.

0034.4215 Applications

  • Protects printed circuit boards from overcurrent.
  • Suitable for industrial control equipment.
  • Used in power supply input protection.
  • Ideal for consumer electronics applications.
  • Applicable in telecommunications equipment.

0034.4215 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 0034.4215 fuse?

400 mA.

What voltage ratings does this fuse support?

125 VAC and 125 VDC.

What is the breaking capacity?

100 A.

Is this fuse fast-acting or slow-blow?

Fast blow (quick-acting).

What is the package type?

Radial, Can (through hole).

What is the operating temperature range?

-25°C to 85°C.

What approvals does this fuse have?

cURus.
