| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Material - Endcaps | |
| Material Tube | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| SVHC Present | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Unit Weight | |
| Voltage Rating |

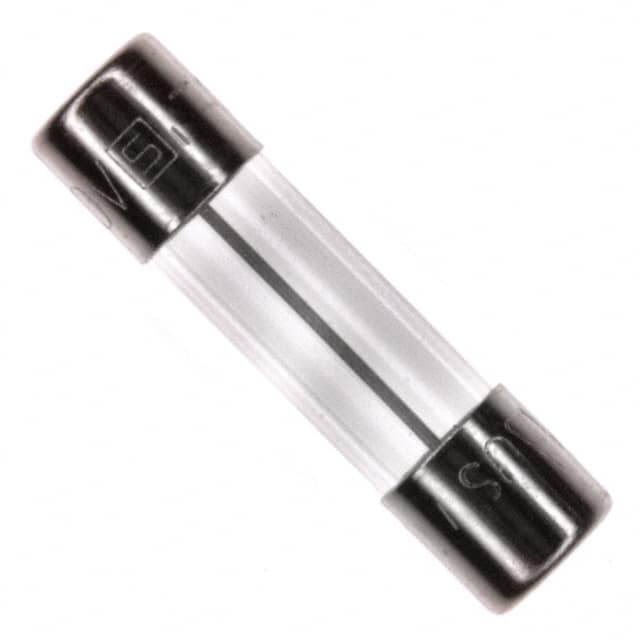

The Schurter 0034.3129 is a 5x20mm glass cartridge fuse with time-lag (T) characteristic, designed for primary protection in equipment per IEC 60127-2. It is rated for 16A continuous current at 250VAC.
Electrical specifications include a breaking capacity of 160A at rated voltage, melting I²t of 1638 A²s, and an operating temperature range of -55°C to 125°C. The fuse is slow-blow, suitable for circuits with inrush currents.
The fuse features a glass tube with nickel-plated copper alloy endcaps. It requires a holder for mounting (not through-hole or surface mount). Approvals include CQC, cURus, PSE/JET, VDE, and it is RoHS and REACH compliant.
16 A.
250 VAC.
160 A at rated voltage.
Time-lag (slow-blow) per IEC 60127-2.
5.20 mm x 20.00 mm (5x20mm cartridge).
-55°C to 125°C.
CQC, cURus, PSE/JET, VDE.
