| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,250 pcs
|
5250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
194 pcs
|
194 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Admissible Ambient Temperature | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Lead Style | |
| Material - Endcaps | |
| Material Tube | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Unit Weight | |
| Voltage Rating |

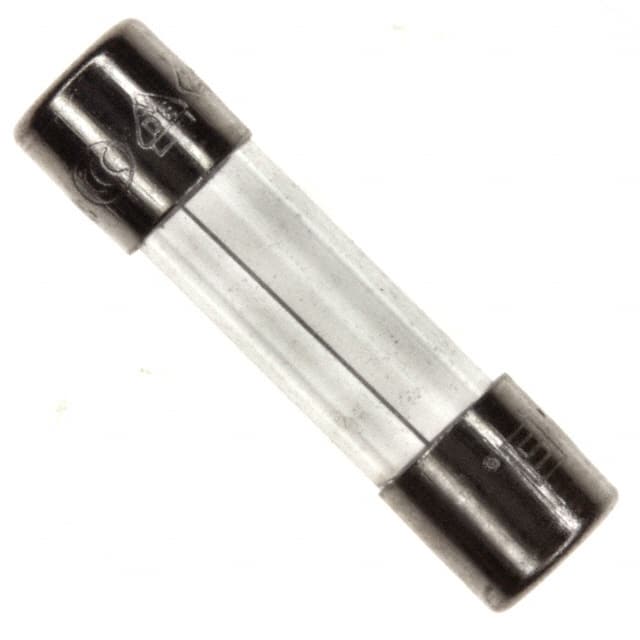

The Schurter 0034.3120 is a 5x20mm glass cartridge fuse designed for primary circuit protection in equipment. It is rated for 2A continuous current at 250VAC and features a slow blow (time-lag) characteristic, making it suitable for applications with inrush currents.
The fuse has a breaking capacity of 35A at rated voltage and a melting I²t value of 16 A²s, providing reliable overcurrent protection. It operates over a wide temperature range of -55°C to 125°C and is classified as climatic category 55/125/21 per IEC 60068-1.
Construction includes a glass tube with nickel-plated copper alloy endcaps. The component requires a holder for mounting. It holds approvals from CCC, cURus, and VDE, ensuring compliance with international safety standards.
The fuse is rated for 2A continuous current.
The voltage rating is 250VAC.
The breaking capacity is 35A at the rated voltage of 250VAC.
It is a slow blow (time-lag) fuse.
The fuse is in a 5mm x 20mm cartridge package and requires a holder for mounting.
The admissible ambient temperature range is -55°C to 125°C.
It is approved by CCC, cURus, and VDE.
